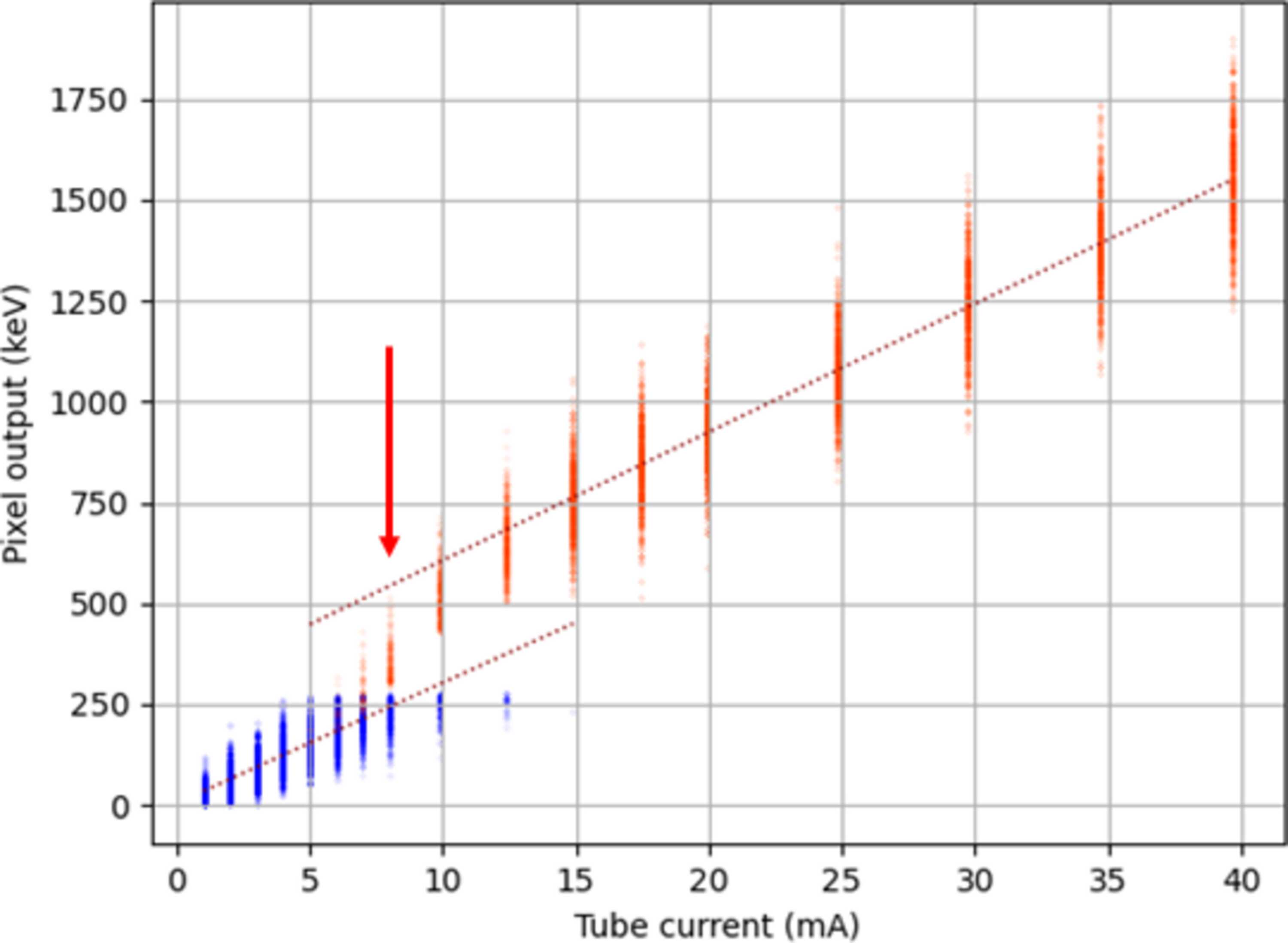

Figure 11
Output response after pedestal and gain corrections, for a single pixel with flood illumination (8 ASICs), showing a discontinuity around the point of switching from G0 to G1. In this case, below 6 mA the pixel is always in G0 (blue), above 15 mA the pixel is always in G1 (orange). Points within the gain change region were excluded from the fits. The point at which the discontinuity between the two gains was evaluated (8 mA tube current) is marked by an arrow.
