Figure 12

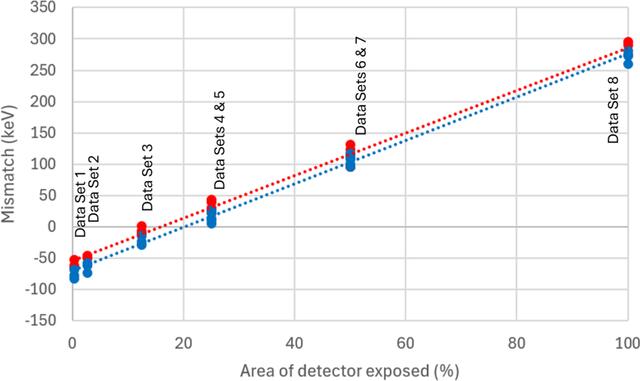

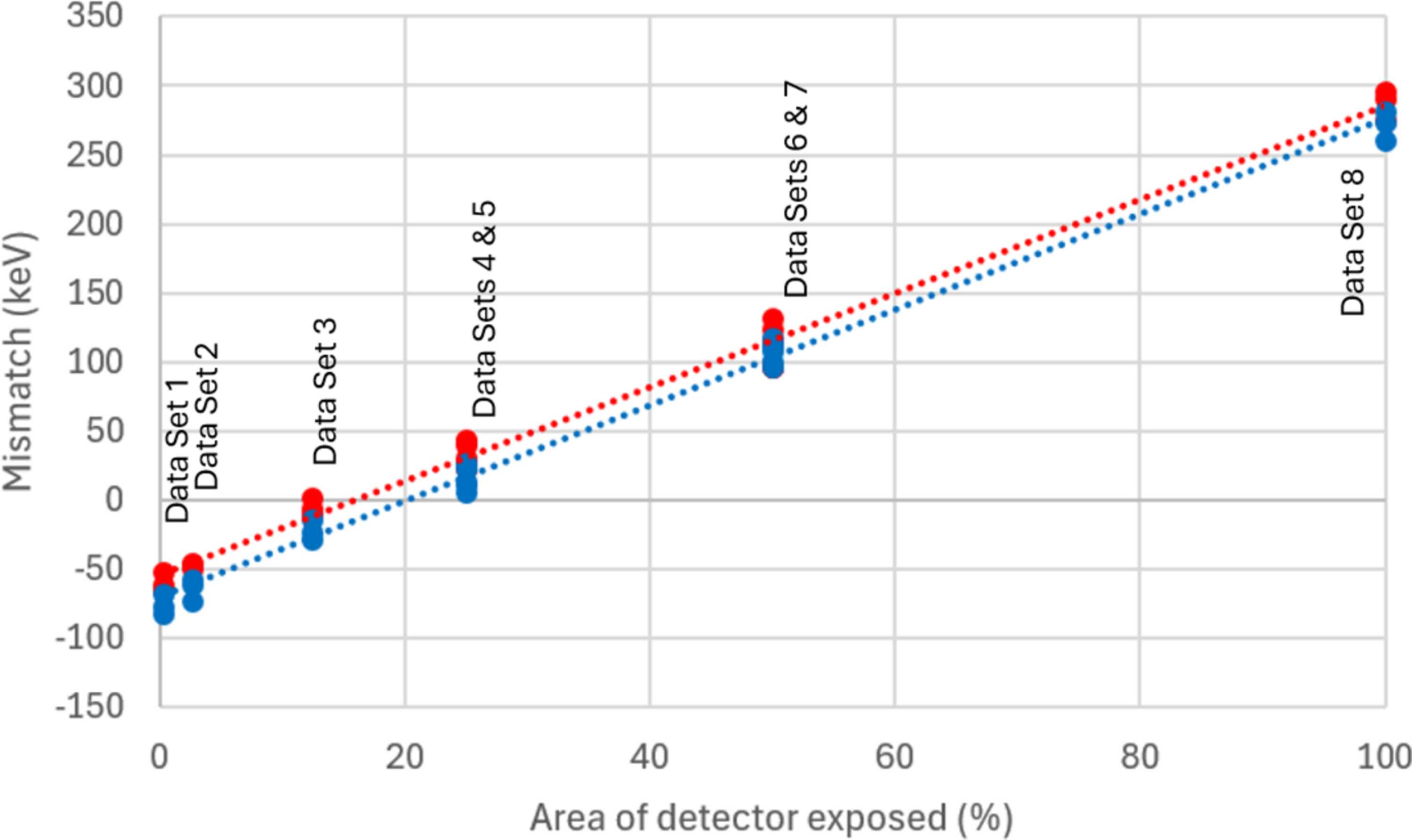

Size of the discontinuity at the switching point, versus area of illumination, for 3 individual pixels. Two data sets are shown: the first (red plot symbols) used continuous mode forced gain pedestals, the second (blue plot symbols) used interspersed mode. The data set index refers to different areas of illumination, as given in Table 1[link].
