Experience with the Jungfrau-1M detector at Diamond Light Source

Matheson, J.; Axford, D.; Bergamaschi, A.; Carulla, M.; Devenish, N.; Frisina, N.; Hinger, V.; Kedych, V.; Lane, C.; Mozzanica, A.; Gimenez-Navarro, E.; O'Hea, J.; Oram, D.; Owen, R.L.; Perl, D.; Prescott, A.; Schmitt, B.; Scully, S.; Taylor, A.; Yendell, G.; Winter, G.

doi:10.1107/S1600577526000342

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 13

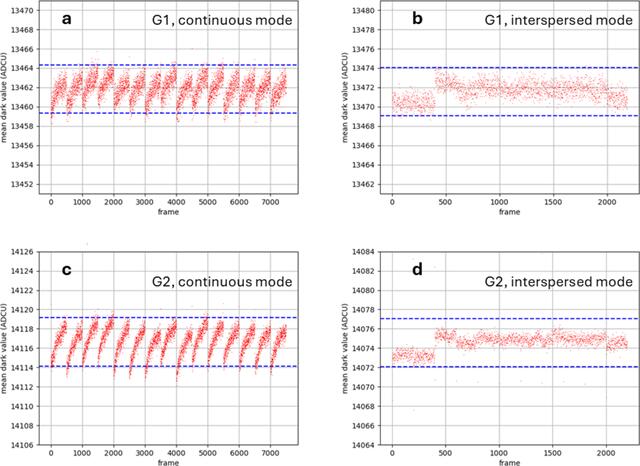

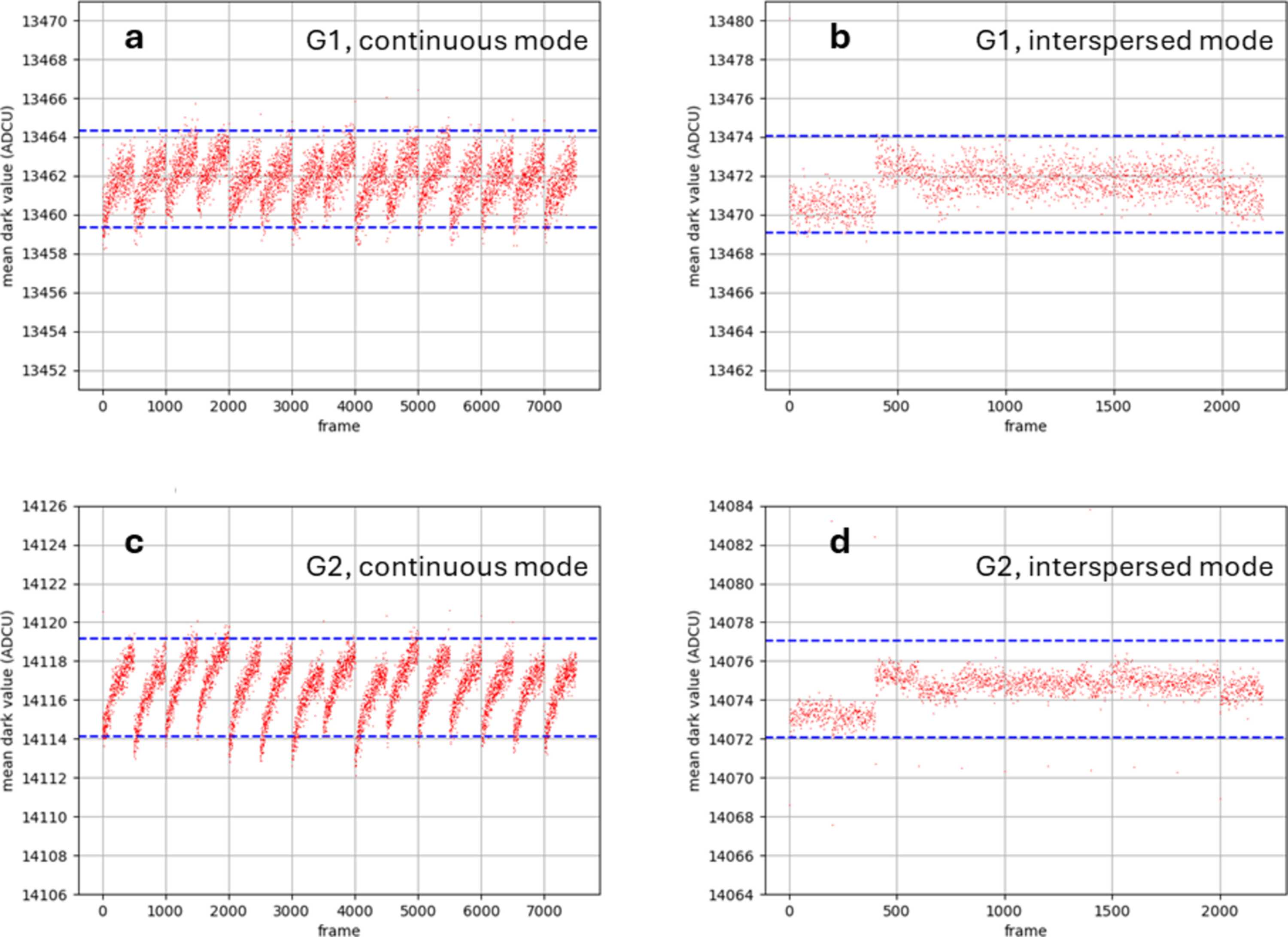

(a) Mean pedestal (ADCU) versus frame count for G1 dark runs, continuous mode (100 fps). (b) Mean pedestal (ADCU) versus frame count for G1 dark runs, interspersed mode (2000 fps). (c) Mean pedestal (ADCU) versus frame count for G2 dark runs, continuous mode (100 fps). (d) Mean pedestal (ADCU) versus frame count for G2 dark runs, interspersed mode (2000 fps). G1 gain is −1.36 ADCU per keV, G2 gain is −0.107 ADCU per keV.
