Experience with the Jungfrau-1M detector at Diamond Light Source

Matheson, J.; Axford, D.; Bergamaschi, A.; Carulla, M.; Devenish, N.; Frisina, N.; Hinger, V.; Kedych, V.; Lane, C.; Mozzanica, A.; Gimenez-Navarro, E.; O'Hea, J.; Oram, D.; Owen, R.L.; Perl, D.; Prescott, A.; Schmitt, B.; Scully, S.; Taylor, A.; Yendell, G.; Winter, G.

doi:10.1107/S1600577526000342

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

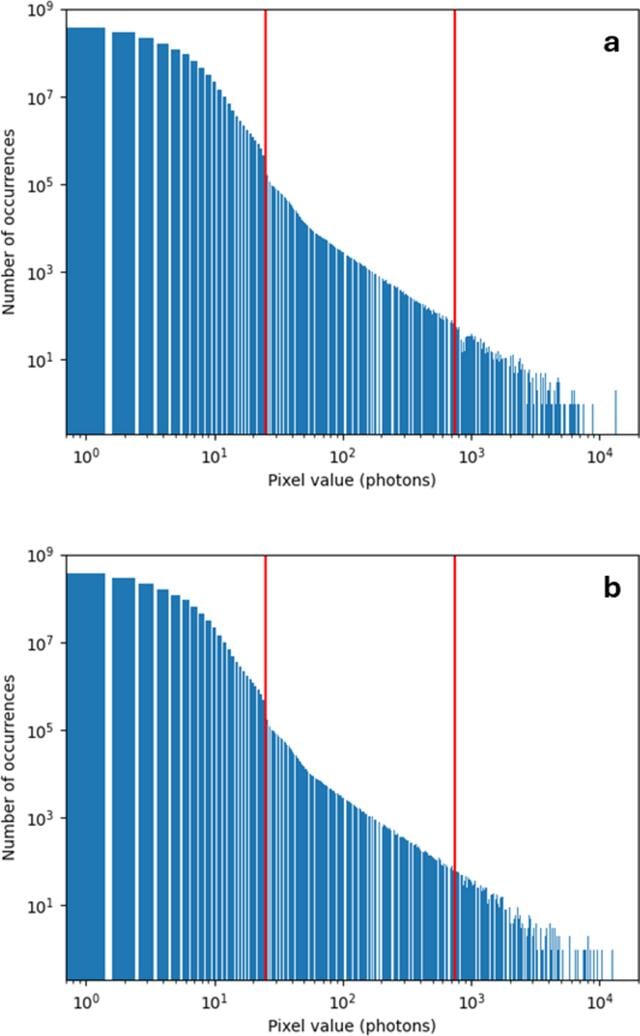

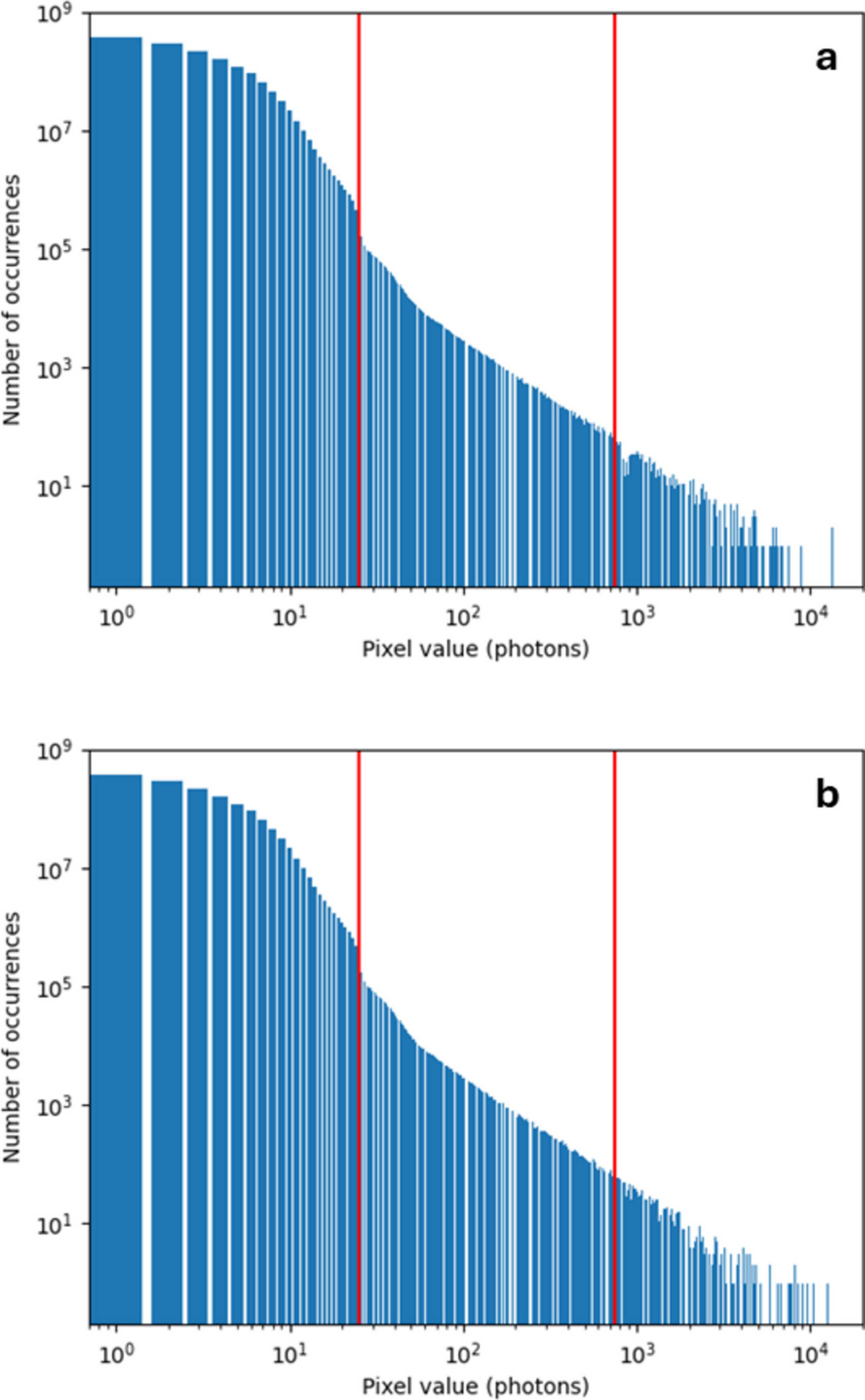

Figure 15
Histograms of all pixel values from an insulin diffraction pattern. (a) Using continuous mode pedestals. (b) Using interspersed mode pedestals. Integration time 0.5 ms, frame rate 2000 fps. The red lines mark the approximate gain switching points at 25 and 750 photons (12.4 keV).

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 33| Part 2| March 2026| Pages 331-343

https://doi.org/10.1107/S1600577526000342
