Experience with the Jungfrau-1M detector at Diamond Light Source

Matheson, J.; Axford, D.; Bergamaschi, A.; Carulla, M.; Devenish, N.; Frisina, N.; Hinger, V.; Kedych, V.; Lane, C.; Mozzanica, A.; Gimenez-Navarro, E.; O'Hea, J.; Oram, D.; Owen, R.L.; Perl, D.; Prescott, A.; Schmitt, B.; Scully, S.; Taylor, A.; Yendell, G.; Winter, G.

doi:10.1107/S1600577526000342

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 4

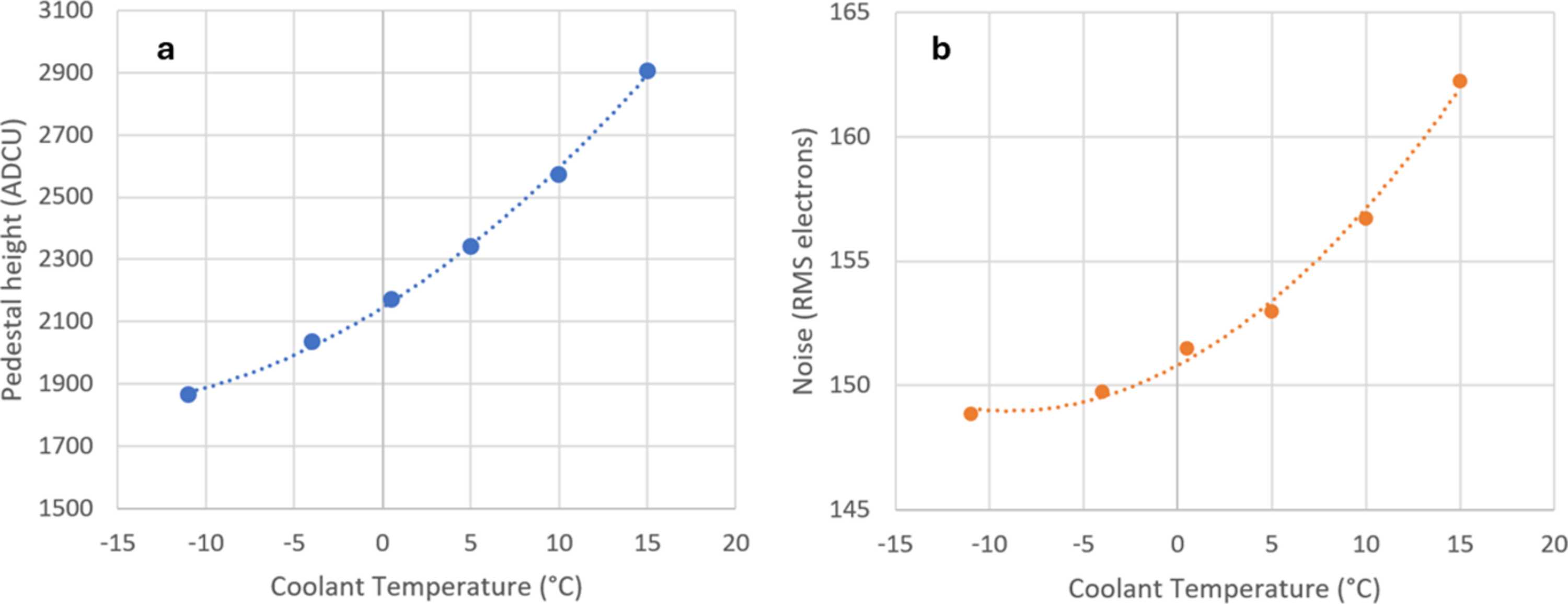

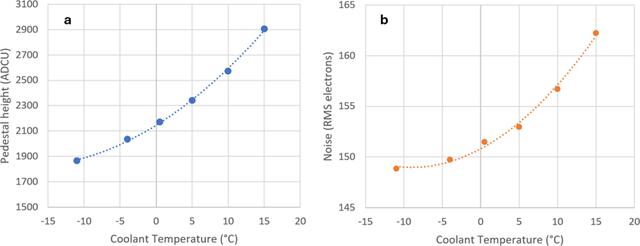

(a) Pedestal height versus coolant temperature at 1 ms integration time in G0. The maximum ADC value is near 16 K. (b) Dark noise (mean of all pixel standard deviations) versus coolant temperature at 1 ms integration time in G0. (Assuming G0 gain of 41.1 ADCU per keV and 3.62 eV per electron hole pair in silicon.)
