Experience with the Jungfrau-1M detector at Diamond Light Source

Matheson, J.; Axford, D.; Bergamaschi, A.; Carulla, M.; Devenish, N.; Frisina, N.; Hinger, V.; Kedych, V.; Lane, C.; Mozzanica, A.; Gimenez-Navarro, E.; O'Hea, J.; Oram, D.; Owen, R.L.; Perl, D.; Prescott, A.; Schmitt, B.; Scully, S.; Taylor, A.; Yendell, G.; Winter, G.

doi:10.1107/S1600577526000342

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

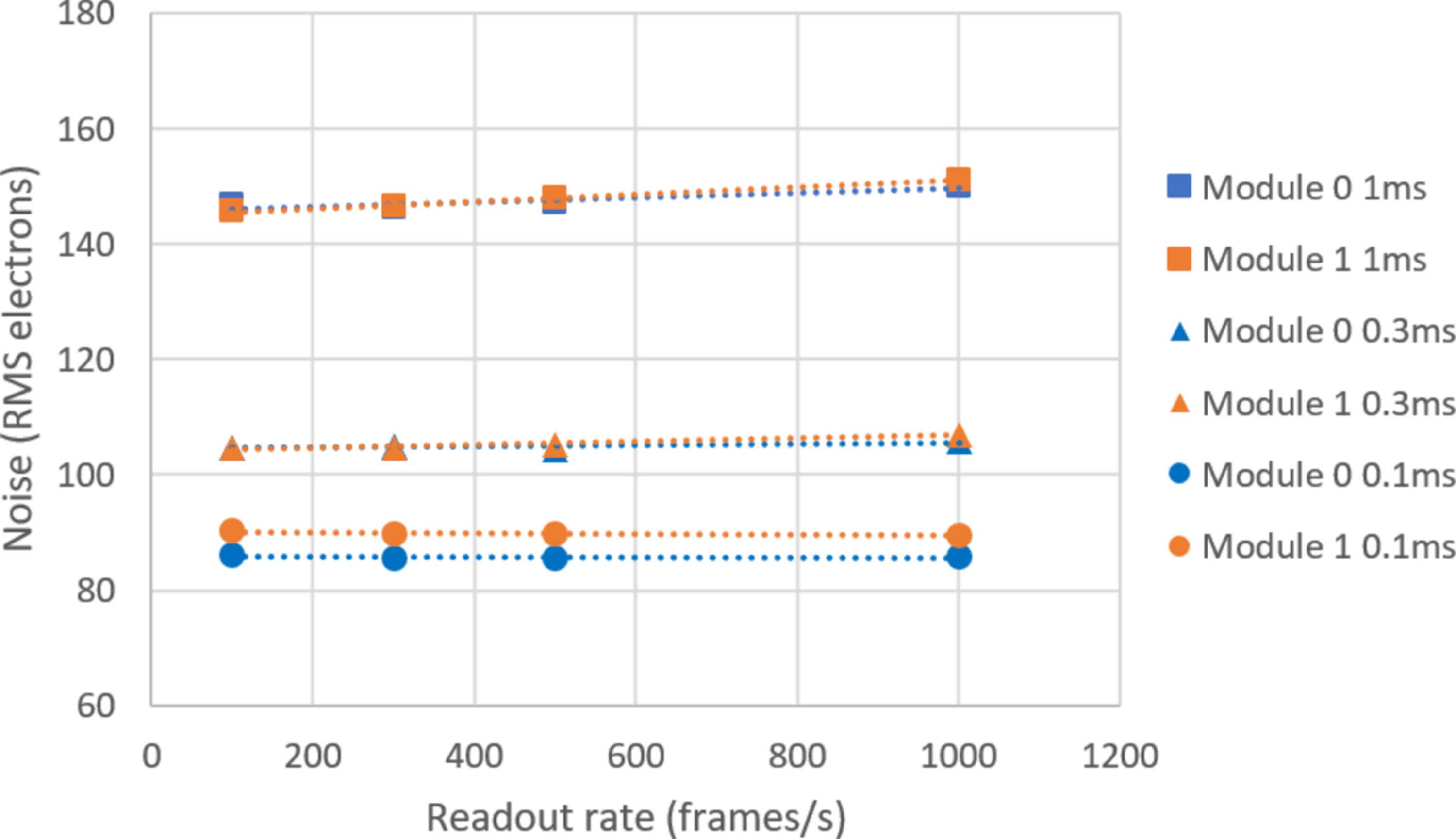

Figure 5
Electronic noise as a function of frame rate, for three different integration times. (Assuming G0 gain of 41.1 ADCU per keV and 3.62 eV per electron hole pair in silicon.)

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 33| Part 2| March 2026| Pages 331-343

https://doi.org/10.1107/S1600577526000342
