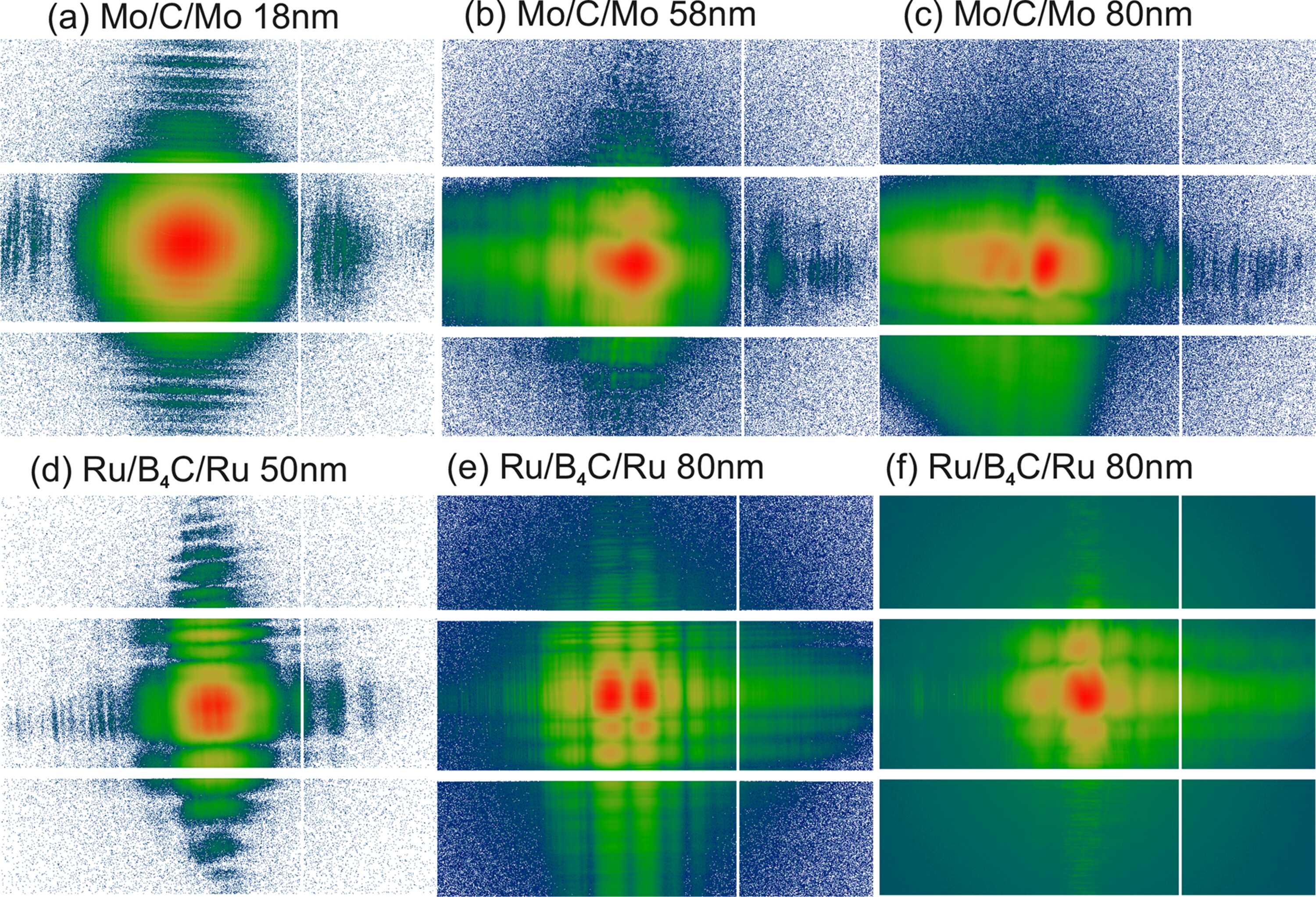

Figure 6
Far-field intensity patterns for different WGx, recorded by the Eiger detector at E = 13.8 keV. (a–c) Mo/C/Mo system with (a) d = 18 nm and L = 0.5 mm, (b) d = 58 nm and L = 0.5 mm, (c) d = 80 nm and L = 0.74 mm. (d–f) Ru/B4C/Ru system with (d) d = 50 nm and L = 2 mm, (e) d = 80 nm and L = 0.3 mm, (f) d = 80 nm and L = 0.74 mm. The WG intensities integrated over the detector area are (in photons s−1): (a) IWG = 1.0 × 107, (b) IWG = 2.4 × 108, (c) IWG = 3.5 × 108, (d) IWG = 3.2 × 107, (e) IWG = 9 × 108, (f) IWG = 3.5 × 109. Logarithmic color code: top (red) end of indicated color palette is mapped to (a) 5000, (b) 50000, (c) 80000, (d) 8000, (e) 3 × 105 and (f) 1.2 × 107 photons; the bottom end (blue) is mapped to one photon; 2 × 2 pixel binning for display. Scale bar: 200 pixels, corresponding to 15 mm.
