Figure 2

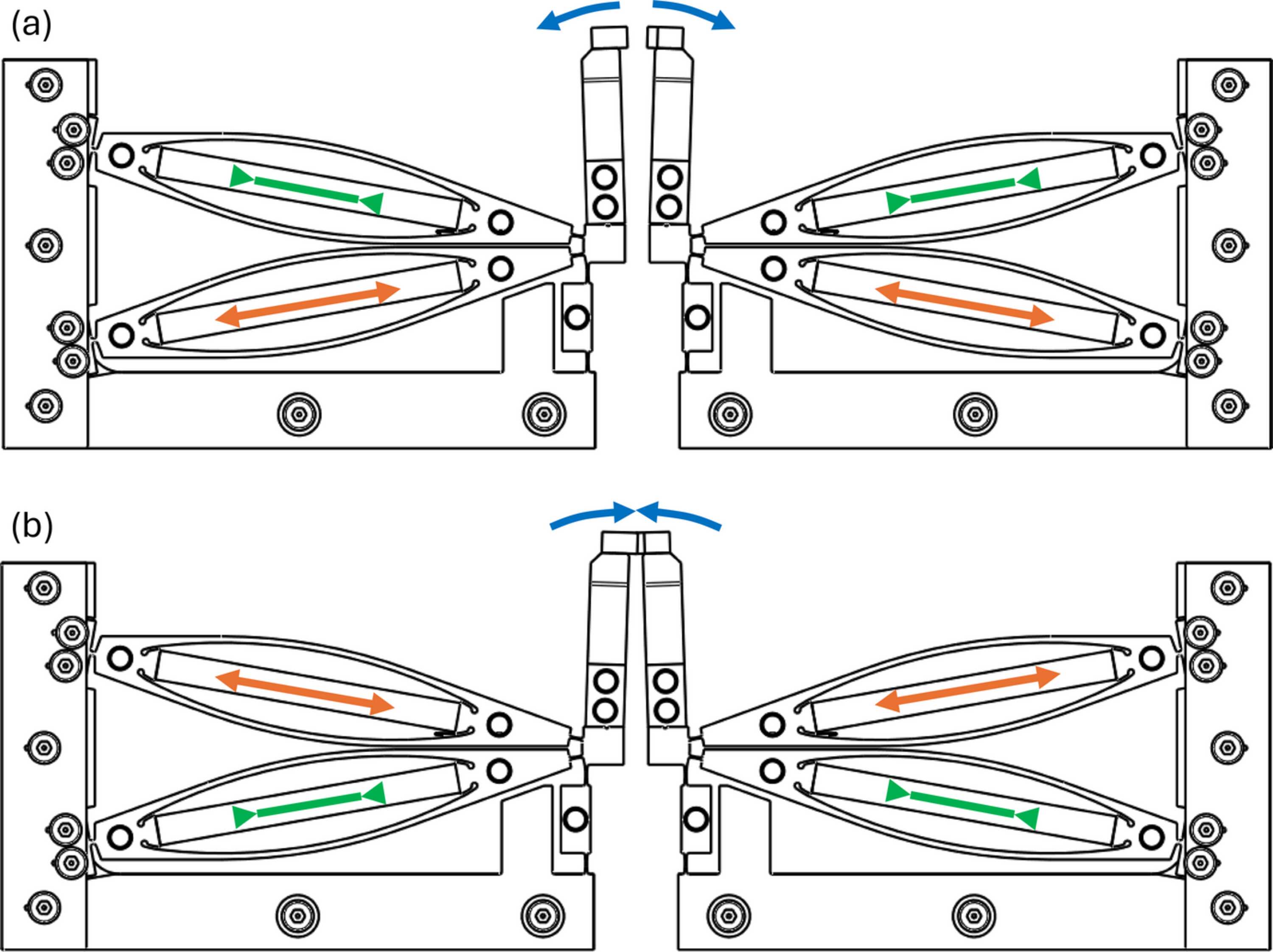

Schematic diagram of the shutter movements. The shutter shown in (a) is in the open state, with the lower piezo elements expanded (indicated by the orange arrows) and upper piezo elements contracted (indicated by the green arrows). The shutter shown in (b) is in the closed state.
