Figure 3

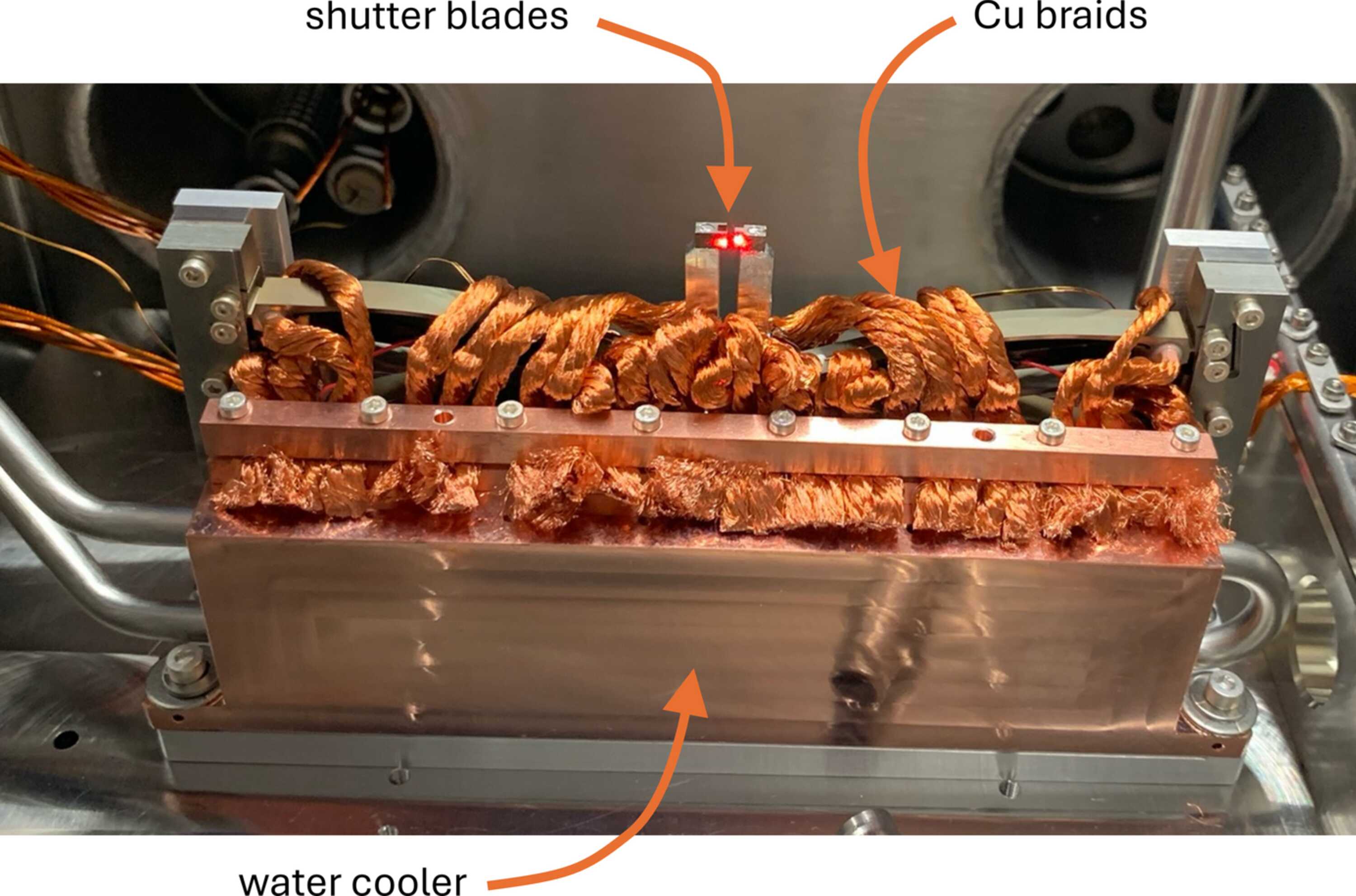

Photograph of the fully assembled shutter. The water-cooled copper block is visible in front, as well as all the cooling braids connected to the shutter mechanism. The copper braids are glued though the circular holes of the shutter module and mechanically clamped to the cooled copper block. The laser spot visible on the shutter blades was used to characterize the shutter and measure the actuation speed. Total dimensions of the module: width 150 mm × height 50 mm × depth 25 mm. Supplementary video 2 shows the shutter in actuation.
