Figure 4

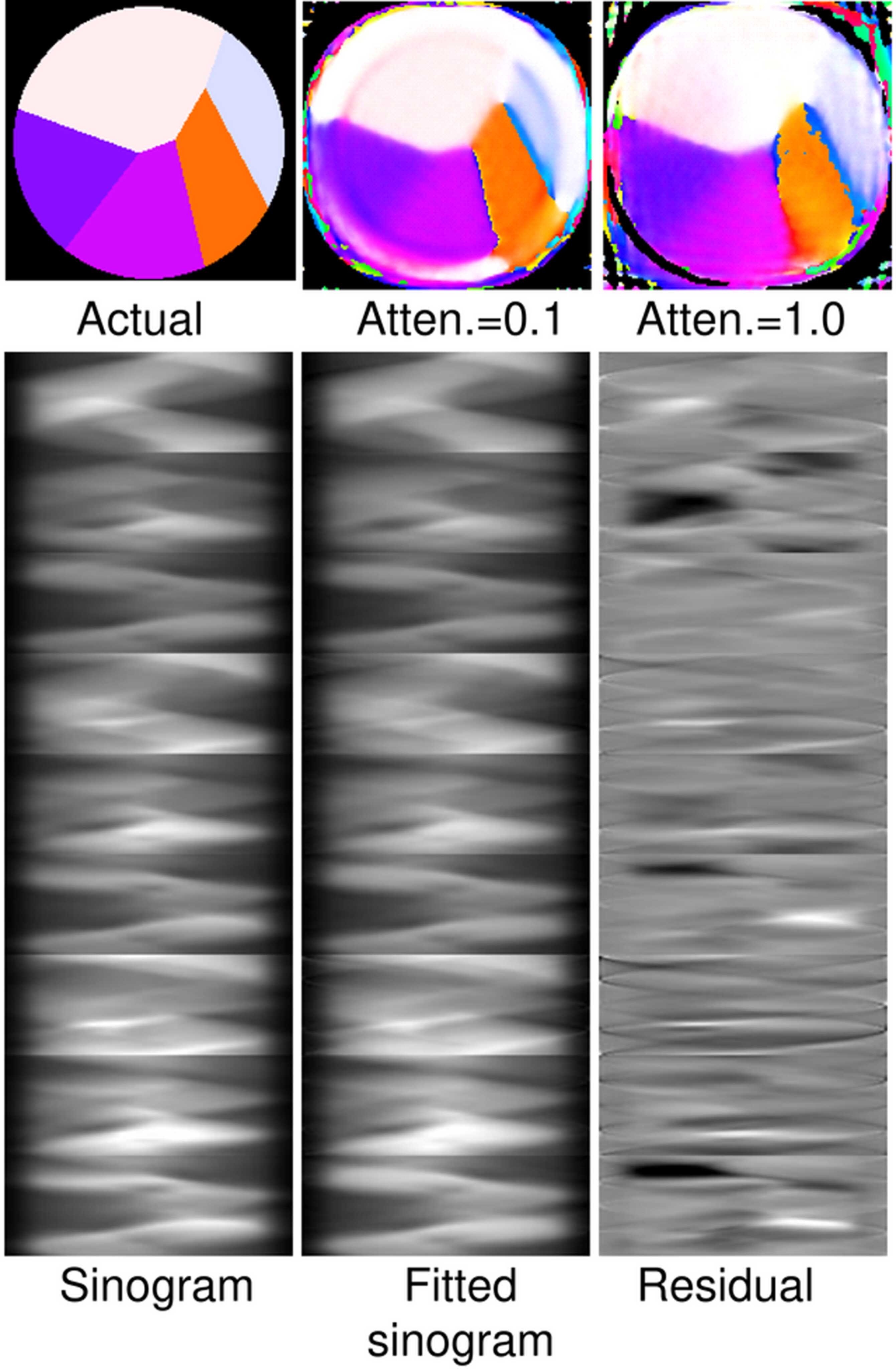

Use of a larger set of conditions for the `experiment'. (Top, left to right) The actual orientation map, the reconstruction with an attenuation factor of 0.1 and the reconstruction done with full anisotropy. (Bottom, left to right) The sinogram at full anisotropy, the reconstructed sinogram and the residual. The white level is 6.4, the residual levels are ±0.8 and the MSE is 0.0047.
