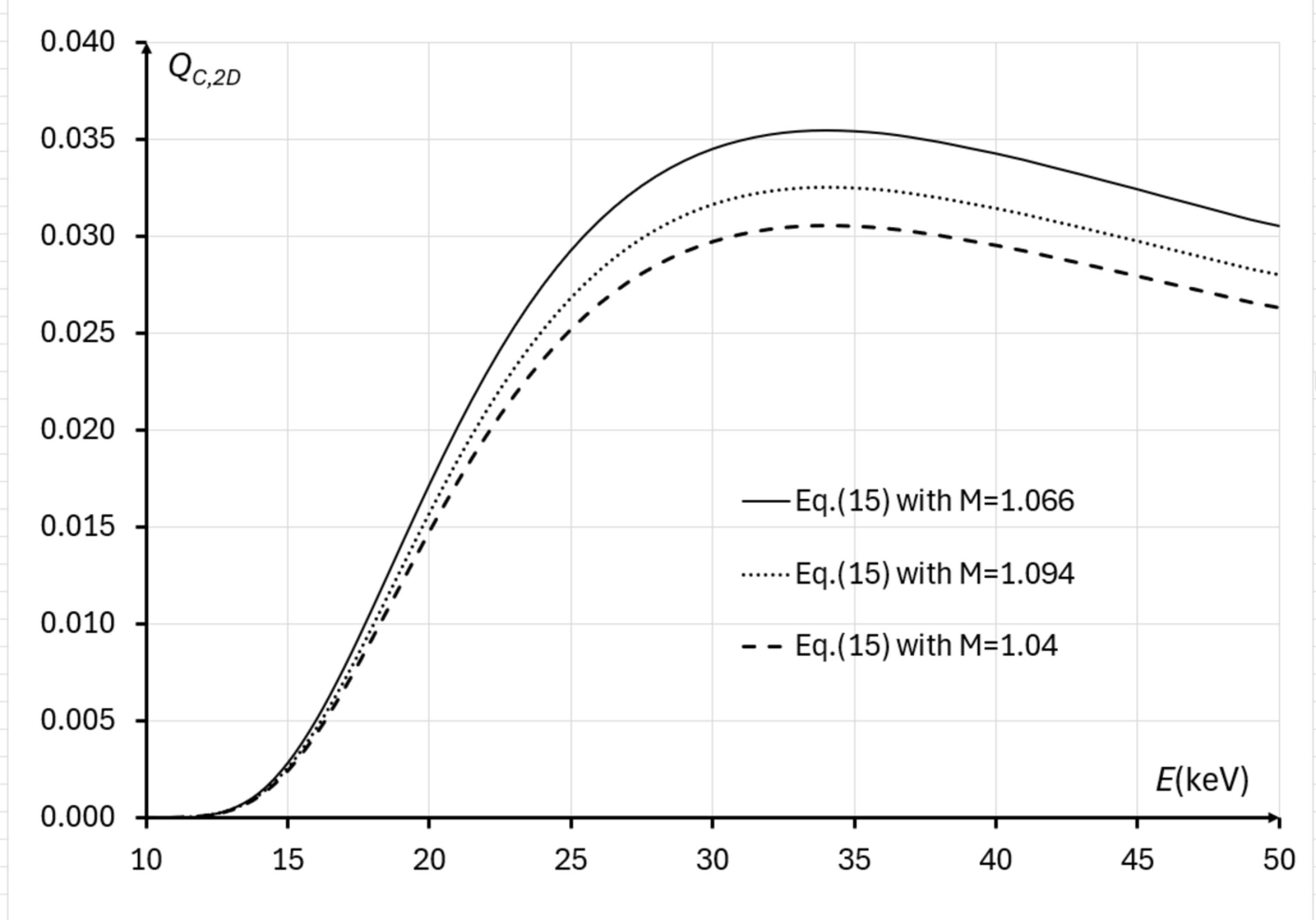

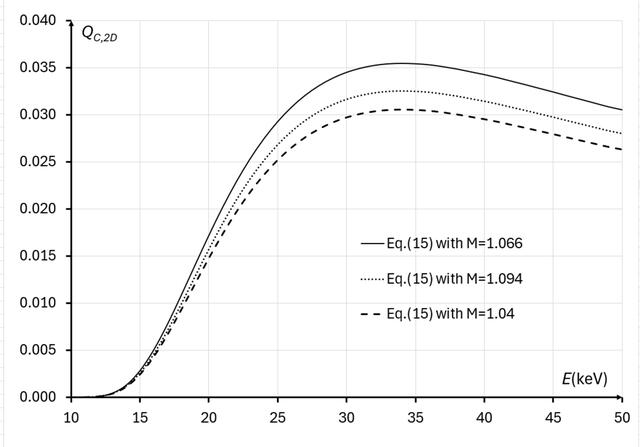

Figure 9
Biomedical X-ray imaging quality QC,2D(M, λ), as expressed by equation (15)[link], in the cases corresponding to imaging configurations with parameters from Tables 1[link] and 2[link], 10 keV ≤ E ≤ 50 keV, Iin(λ) = 1 µm−2, and different magnifications: M = 1.094 (R2 ≃ 12.03 m, dotted line), M = 1.066 (R2 ≃ 8.67 m, solid line), M = 1.04 (R2 ≃ 5.38 m, dashed line). The optimal energy in this case is E ≃ 34 keV.
