Figure 2

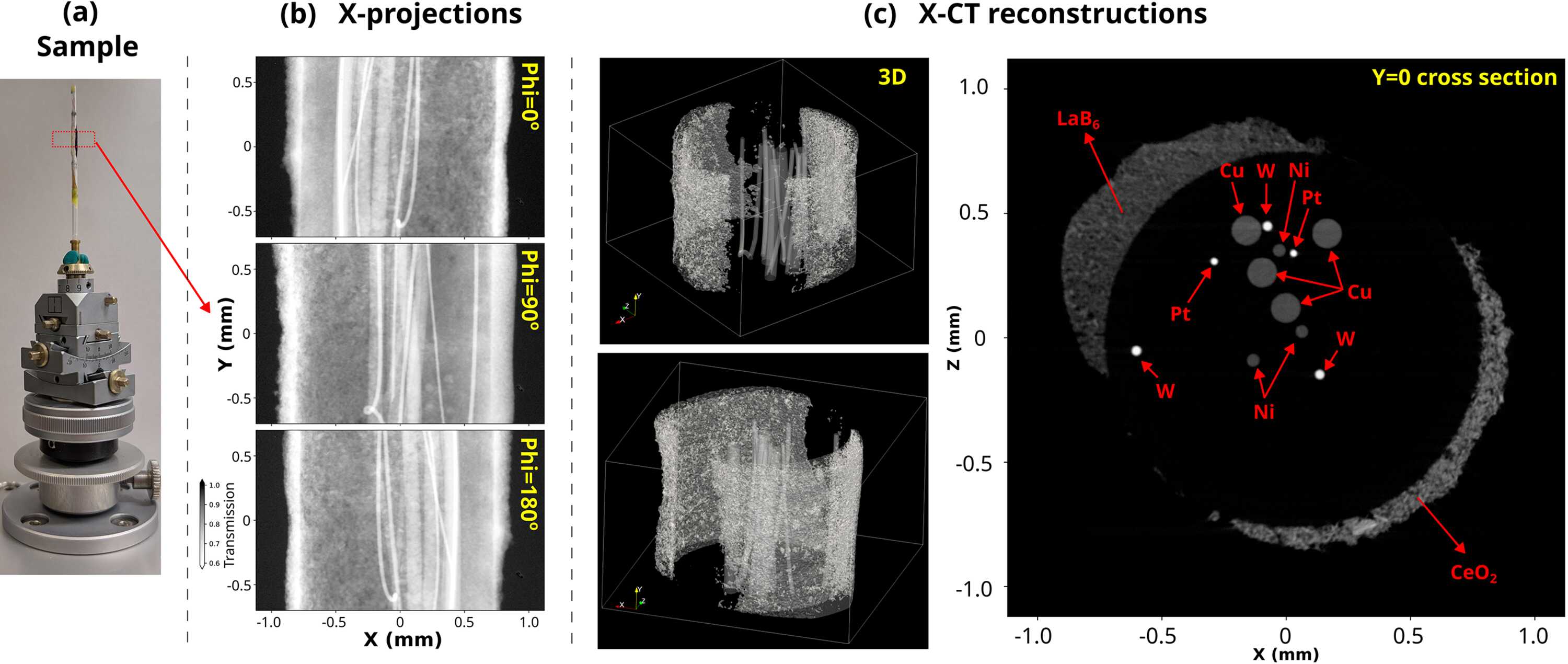

(a) Photograph of the demonstration sample used in this study. The dashed red rectangle shows the approximate location of the sample probed by the X-rays. (b) X-ray projections (radiographs) of the sample at three different Phi angles. (c) Reconstructed 3D X-CT volume of the sample and one Y = 0 cross section of the 3D reconstructed volume. The constituents of the sample are highlighted by the arrows. Quartz and Al2O3 regions cannot be identified in this 2D map.
