Figure 4

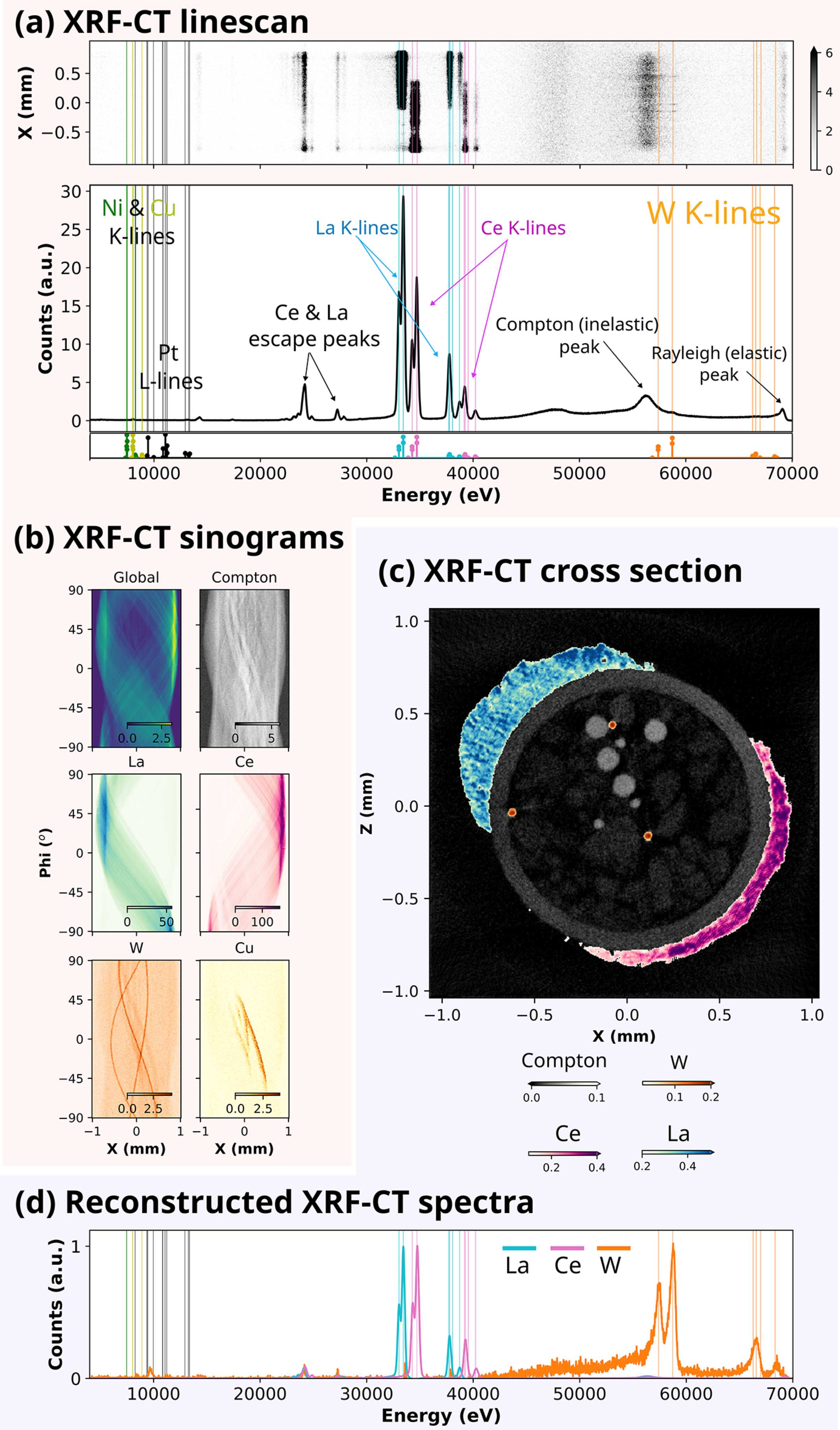

(a) X-ray fluorescence line-scan of the demonstration sample. Calculated XRF characteristic lines positions are indicated with the vertical lines in the bottom panel. (b) Total intensity (global), Compton, La, Ce, W and Cu XRF-CT sinograms. (c) XRF-CT y-cross section. La, Ce, and W reconstructions are overlayed on a Compton map. (d) Individual XRF spectra corresponding to La, Ce and W lines from the ROI pixels chosen from the y-cross section.
