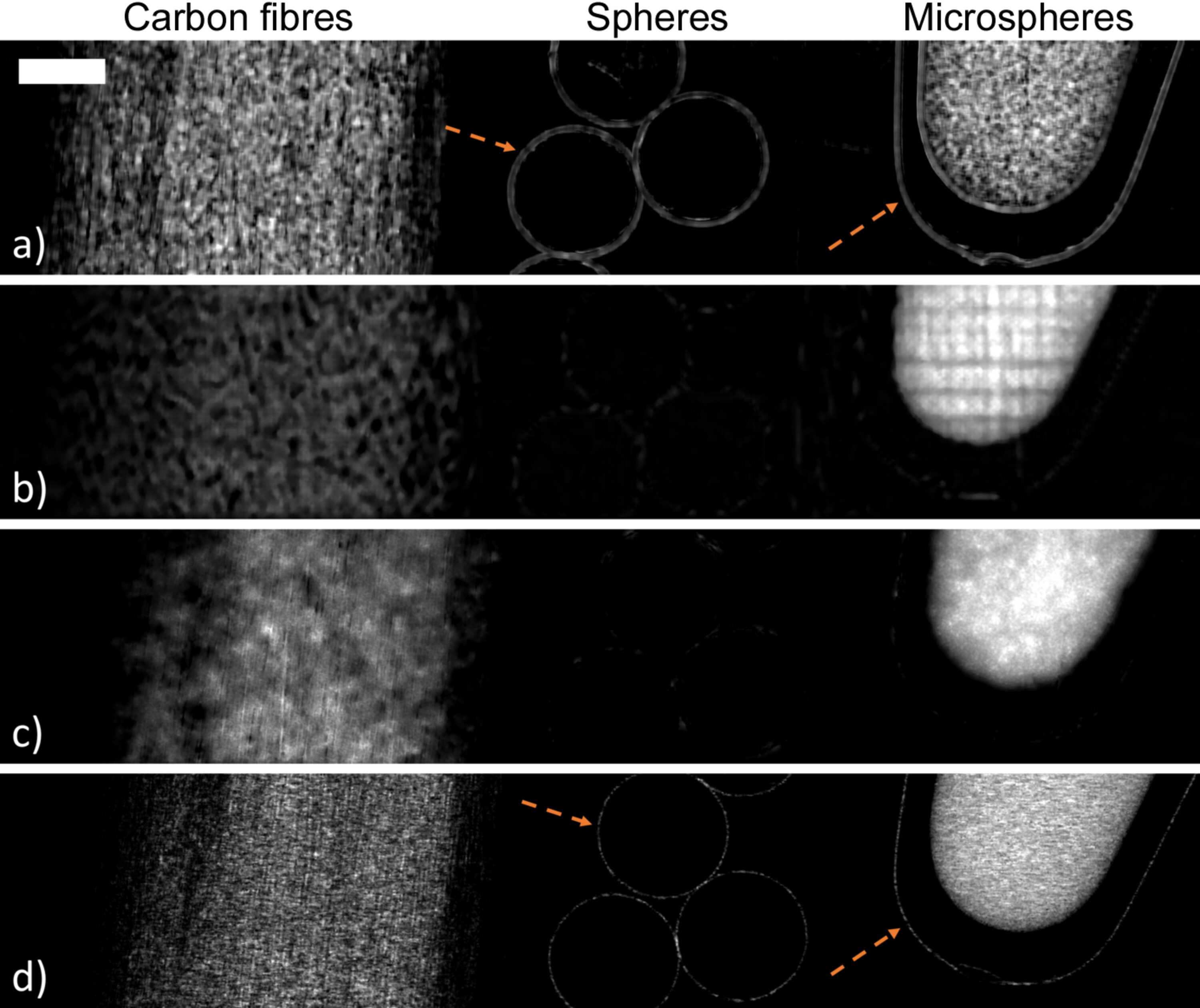

Figure 3
Retrieved dark-field images of the carbon-sphere sample using the different retrieval approaches: (a) dual-energy propagation-based, (b) single-grid, (c) single-speckle and (d) multi-speckle. Dashed orange arrows in panels (a) and (d) highlight edges in the sample that are only resolved by the corresponding approaches. The white rectangle in panel (a) denotes the 1 mm scale bar for all images. The grayscale ranges for the images are [min (black), max (white)]: (a) = [0.0, 1.5] × 10−10, (b) = [0.0, 1.0] × 10−10, (c) = [0.0, 4.0] × 10−11 and (d) = [0.0, 6.0] × 10−11.
