Figure 2

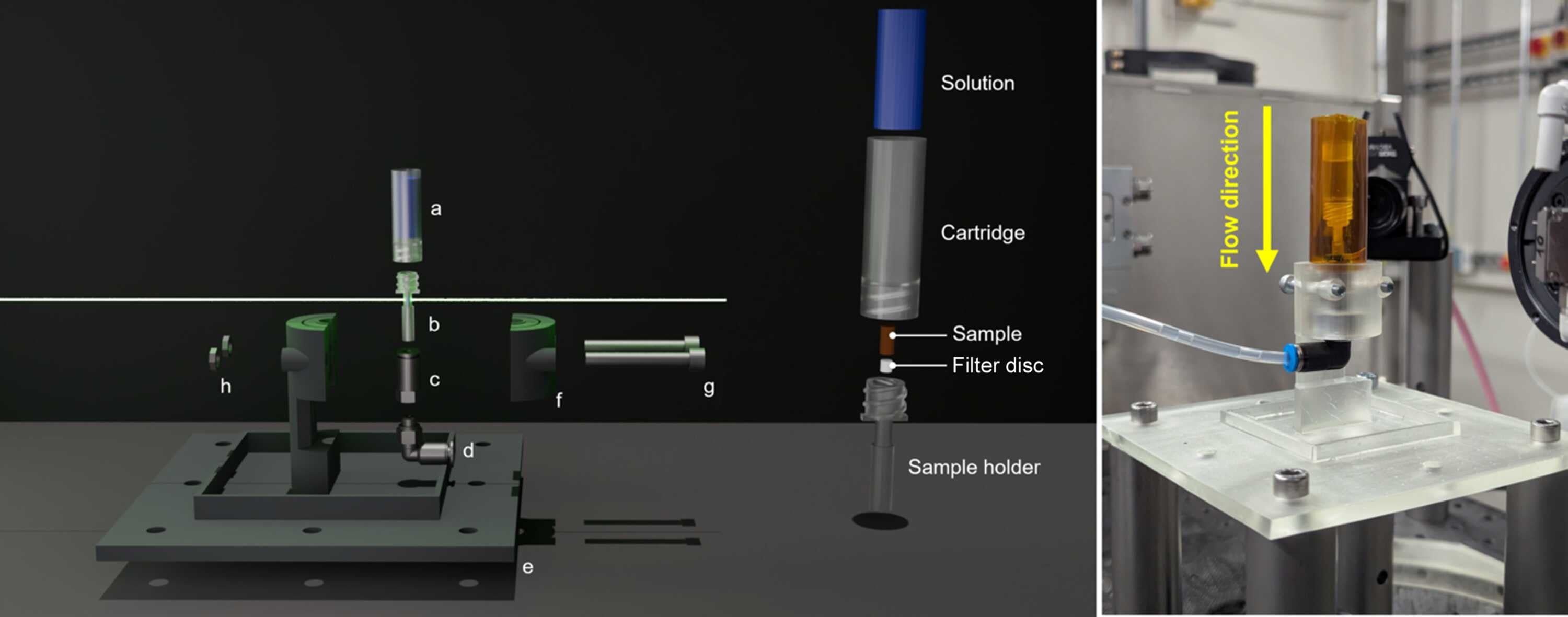

(Left) Exploded rendered view of the flow cell, showing the path of the beam through the sample and components. (a) Liquid sample cartridge, (b) solid sample holder, (c) Festo 4 mm push-fit fitting, (d) Festo 4 mm L-fitting rotary union, (e) base plate, (f) clamp, (g) M4 × 35 mm bolt and (h) M4 nut. (Centre) Sample and solution loading shown in scaled-up exploded render. (Right) Image of the set up for a flow-cell experiment on DIAD. A Kapton cowl was included as an additional protective measure for any leakage during testing.
