The design of a low-cost 3D printed flow cell for synchrotron computed microtomography

Perera, L.; Garland, P.; Kirk, C.; Leonardi, A.; Love, J.B.; Manchester, T.; Morrison, C.A.; Rae, R.; Vance, S.S.M.; Ahmed, S.I.

doi:10.1107/S1600577526000123

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 3

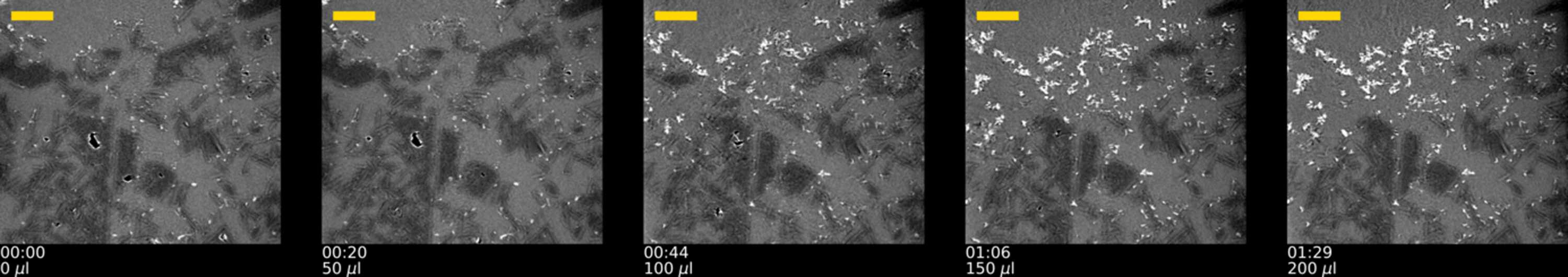

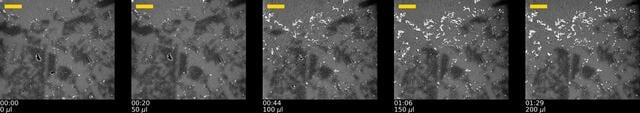

Series showing dissolution precipitation of Sn-containing precipitate during a single flow-through experiment. Sequential XZ slices are taken from the centre of the reconstructed volume, with time in minutes and volume in microlitres labelled. Dark features are the precursor ligand and brighter regions represent more-attenuating metal precipitate. The scale bar is 200 µm.
