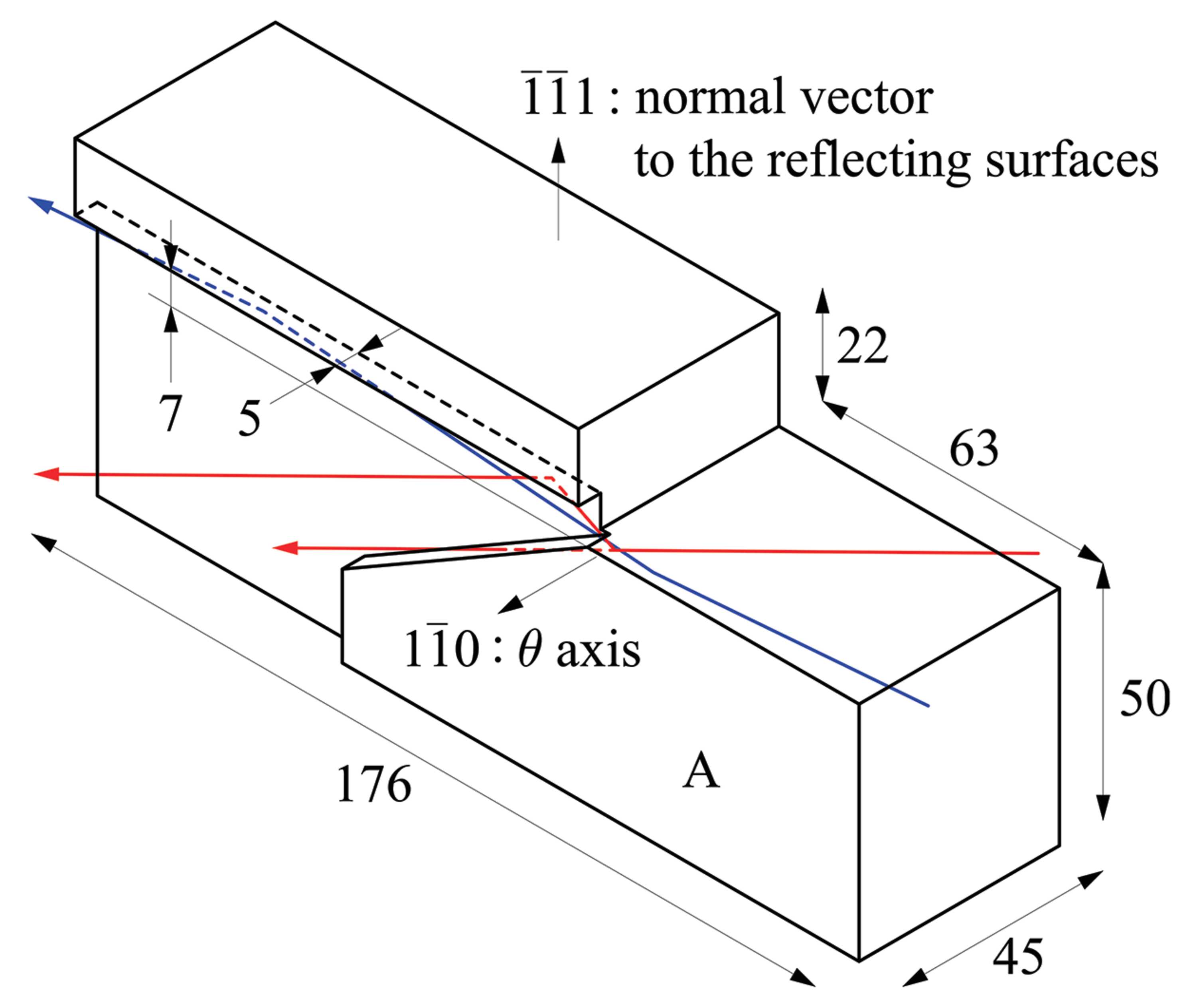

Figure 2
Design of the first channel-cut crystal. All dimensions are in millimetres. Bragg angles were varied by θ rotation of the crystal about the Mathematical equation axis. Red and blue lines represent beam paths relative to the crystal orientation at photon energies of 4.46 keV and 24.8 keV, respectively. Higher-energy components in the incident beam escape from the side surface of the first reflecting body.
