High-throughput X-ray total scattering measurement system at BL04B2 of SPring-8

Yamada, H.; Shimono, S.; Kawaguchi, S.; Ohara, K.; Watanabe, K.; Takemoto, M.; Tseng, J.-; Takahashi, M.; Sada, Y.; Yamazaki, H.; Ohashi, H.; Imai, Y.; Hatsui, T.; Inoue, I.; Kimura, S.; Sugimoto, K.; Yabashi, M.; Sakata, O.; Higo, Y.; Tamasaku, K.

doi:10.1107/S1600577525011294

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 1

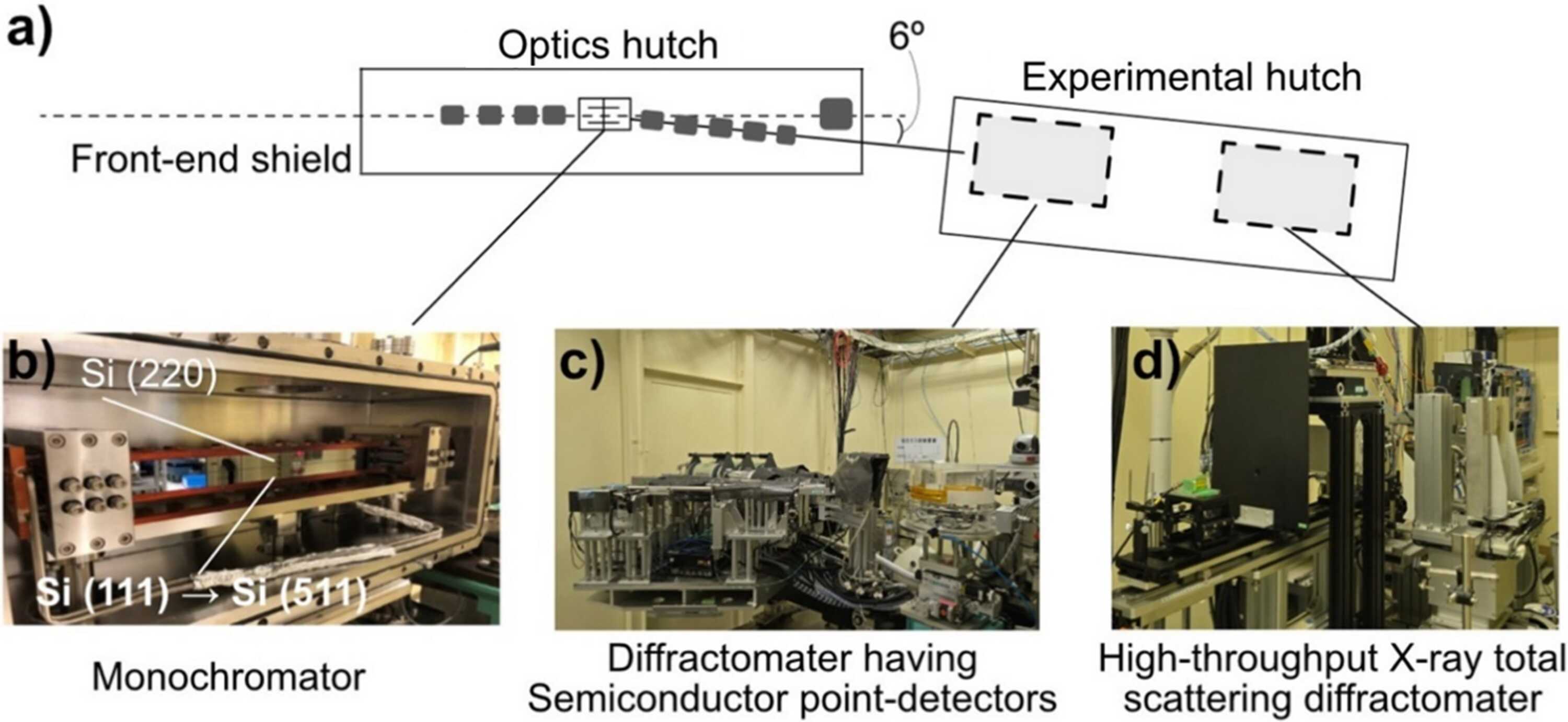

(a) Annotated schematic of the optical and experimental hutches at BL04B2. (b) Photographs of the Si(220) monochromator designed for X-rays with an energy of 61 keV, and the Si(511) monochromator that replaced the Si(111) monochromator to accommodate X-rays with an energy of 113 keV. (c) A two-axis horizontal diffractometer equipped with seven point-type semiconductor detectors was installed upstream. (d) A newly developed high-throughput X-ray total scattering diffractometer was implemented in the experimental hutch downstream.
