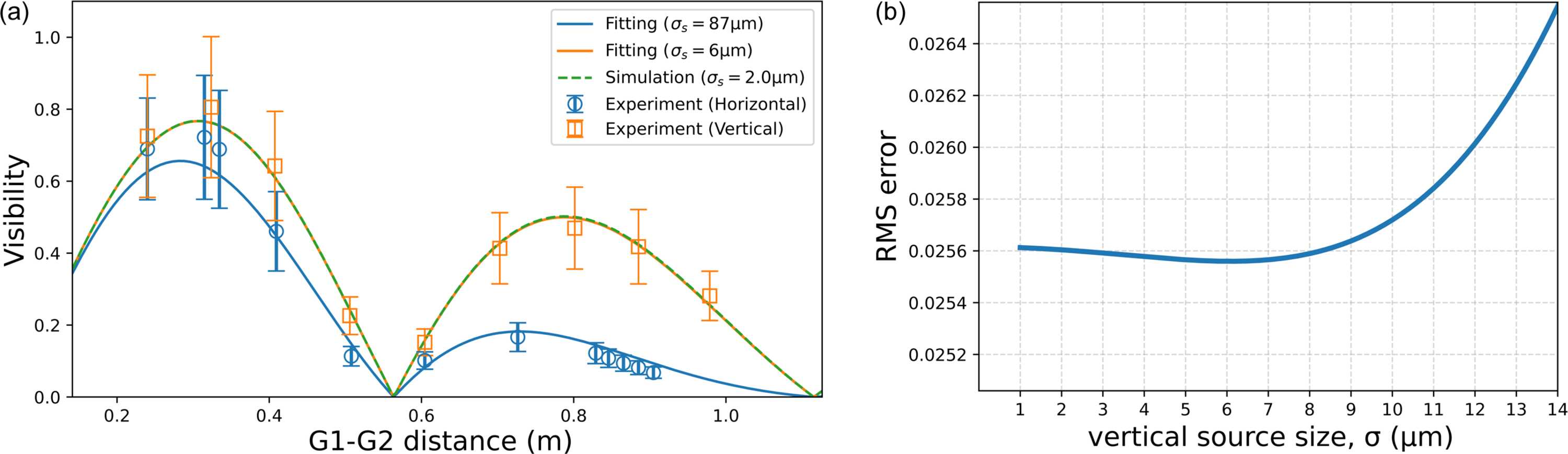

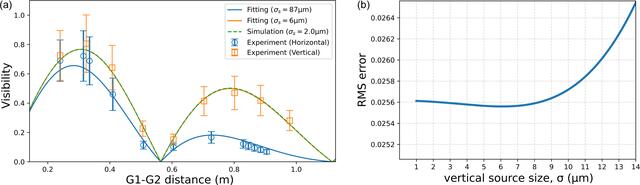

Figure 5
(a) Measured visibilities (circles and squares) as a function of the G1–G2 distance R2, together with the polychromatic model fits (solid curves). Estimated source sizes are σs,H = 87 µm and σs,V = 6 µm. The dashed curve represents the vertical visibility for σs,V = 2 µm. (b) RMS error between the measured and modeled visibilities as a function of vertical source size σs,V.

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 2| March 2026| Pages 481-488
https://doi.org/10.1107/S1600577526000512
