![[Figure 2]](yn5122fig2mag.jpg)
|
|

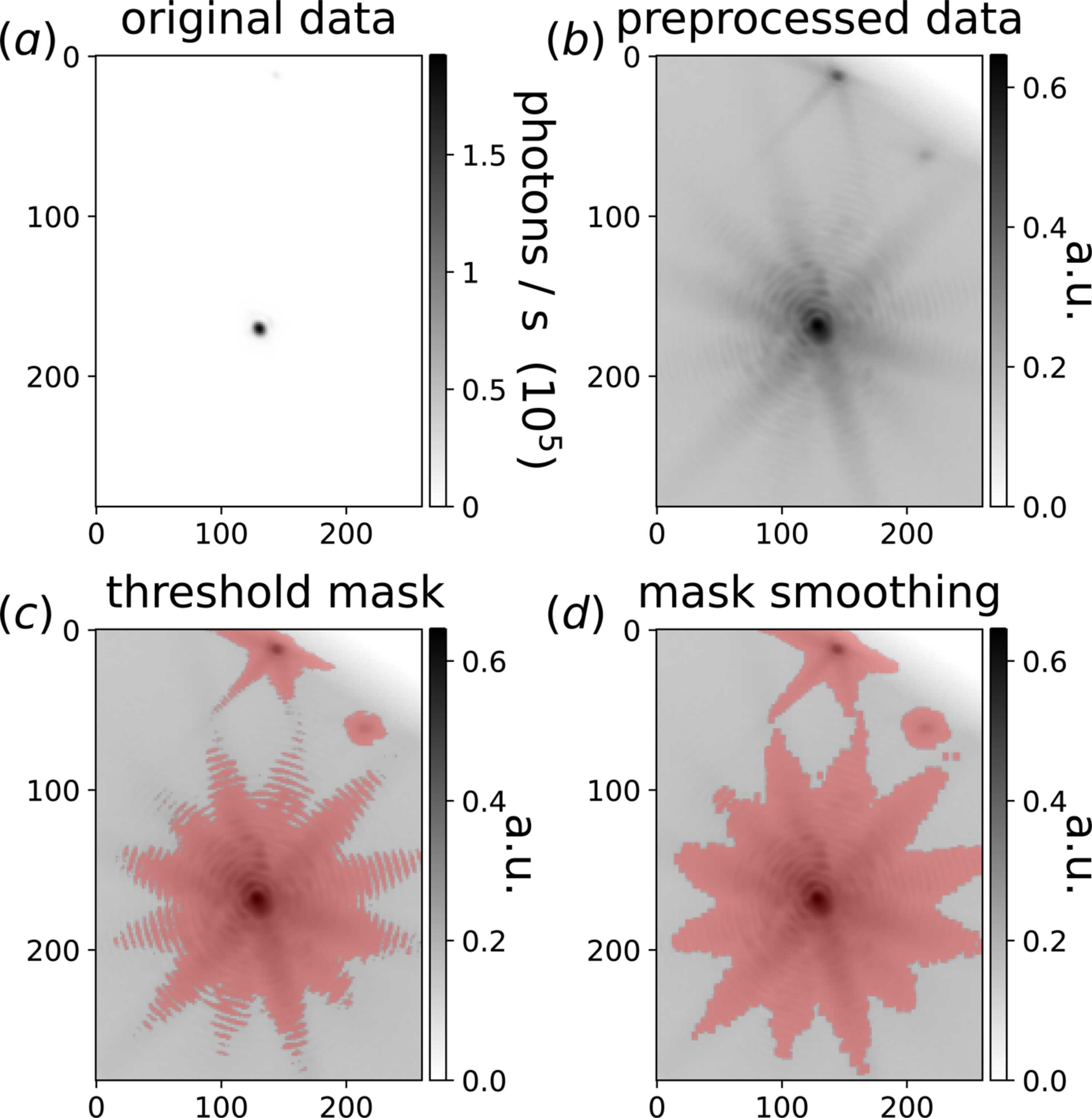

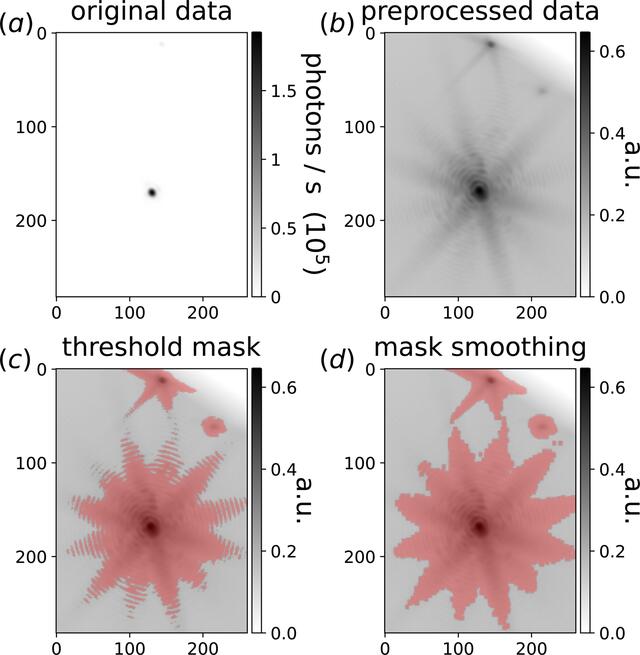

Figure 2
Step-by-step preprocessing. (a) Linear scale projection of the 3D BCDI data along the first dimension. (b) Hot + low pixel filtering followed by a custom log-rescaling. (c) Intensity threshold mask Mth in red. (d) Mask smoothing using a maximum filter in order to merge the Bragg peak fringes. |
![[Figure 2]](yn5122fig2.jpg)
