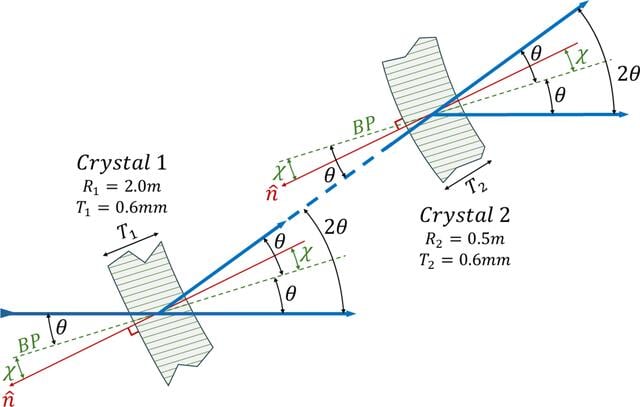

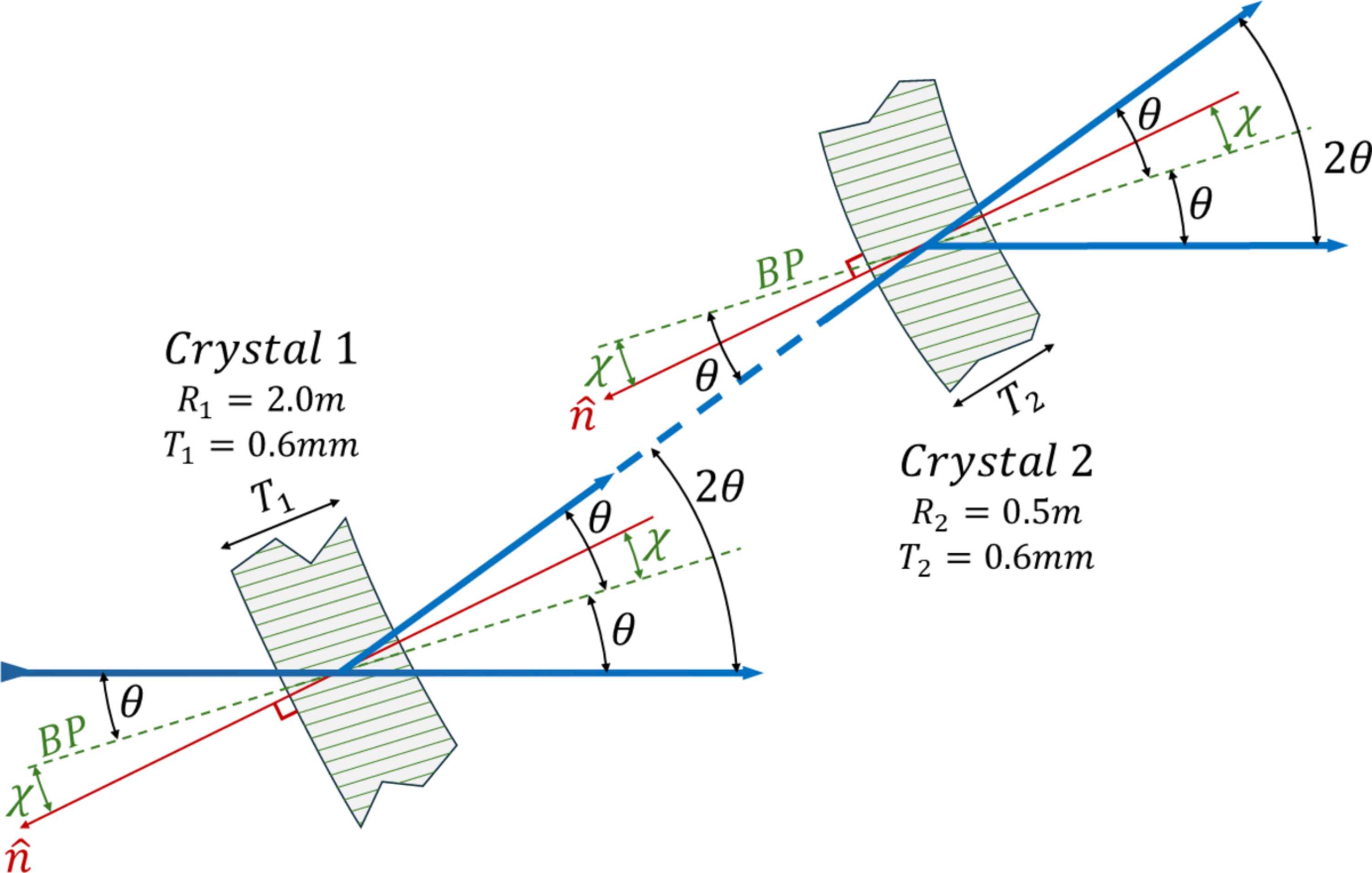

Figure 2
Schematic of the two-crystal compressor arrangement showing the approximate relationship between an X-ray beam (blue), the lattice planes (green) and the surface normal, Mathematical equation (red). The angles that the rays make relative to the crystal's lattice planes (θ) and the lattice planes' (BP) inclination relative to the crystal surface (χ) are indicated. A single ray is shown that interacts with the two crystals to indicate in more detail the diffraction geometry.
