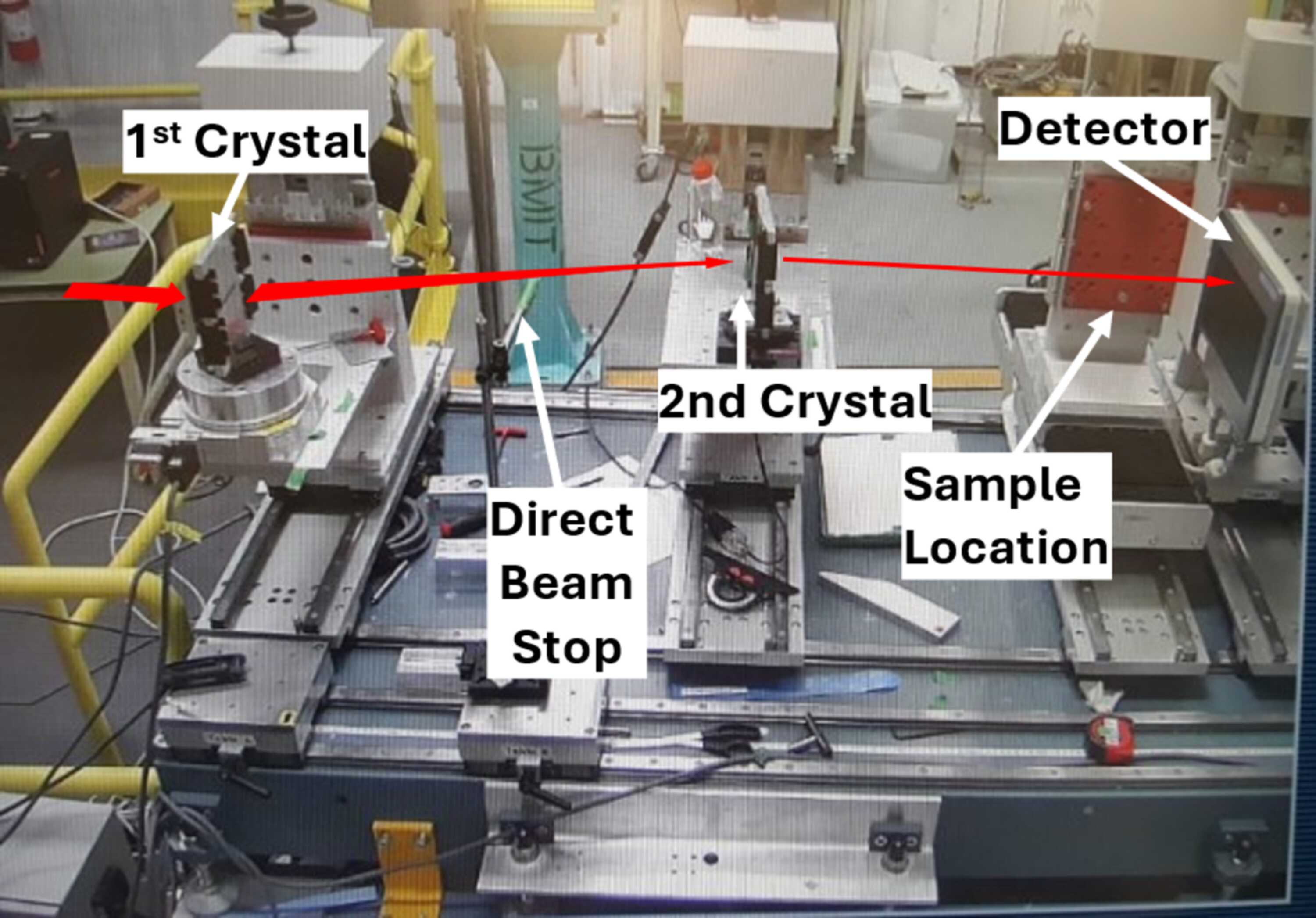

Figure 3
Setup of two mounted crystals, sample stage and detector at the beamline. The compressed beam path is shown in red. The distance along the incident beam path from the first crystal to the plane of the detector is approximately 135 cm. The vertical translation stage that holds the sample is shown, but not with the sample alignment and rotary stages.
