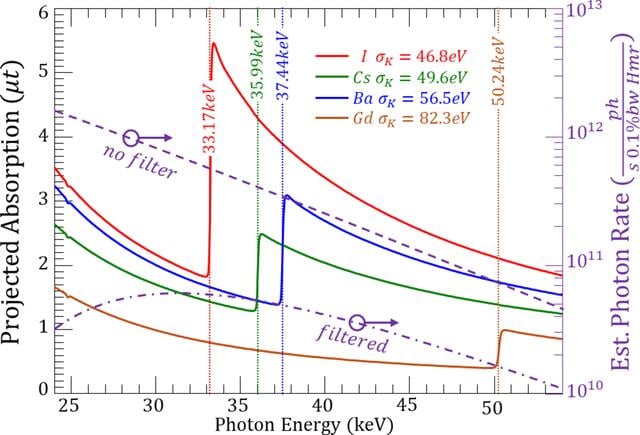

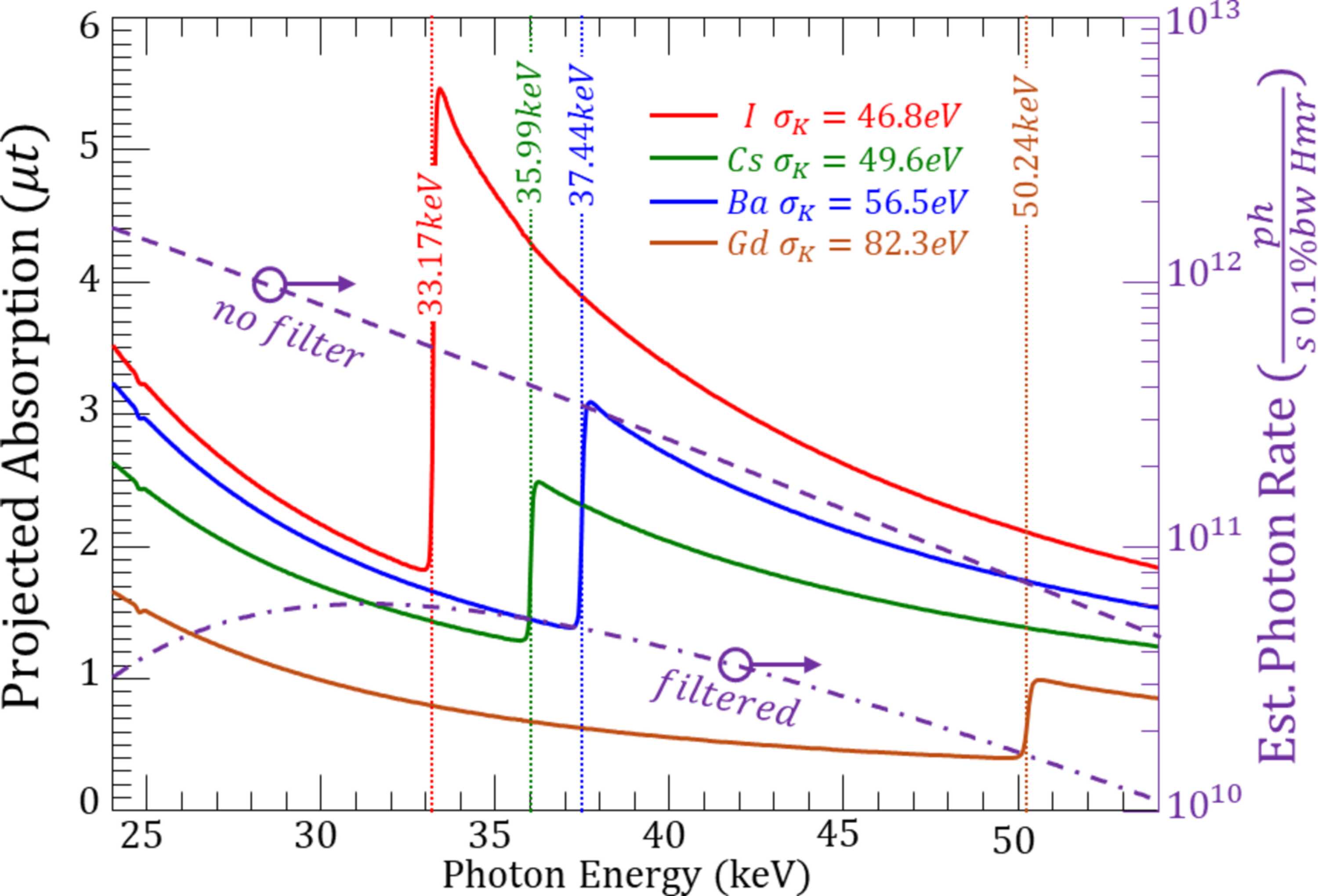

Figure 6
Measured K-edges of I, Cs, Ga and Gd based on the calibration using the I and Ba K-edges. Also shown is the measured K-edge widths for each element based on a Gaussian fit to the energy derivative of each edge. The violet dashed and dot–dashed lines with scale on the right indicate the calculated incident photon rate to the compressor without (dashed) and with the combined aluminium and water (dot–dashed) filters, showing the effect of spectrally flattening the imaging beam.
