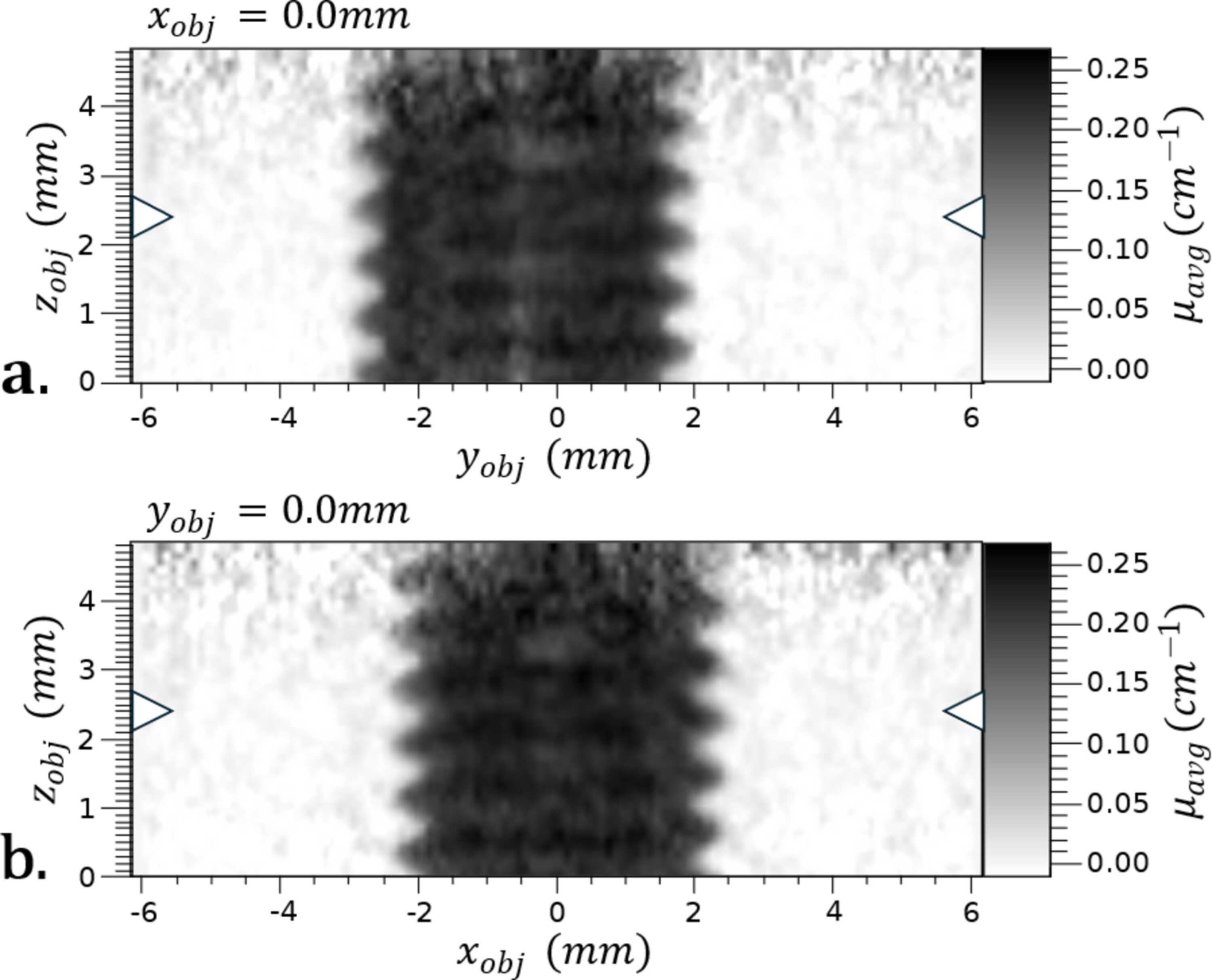

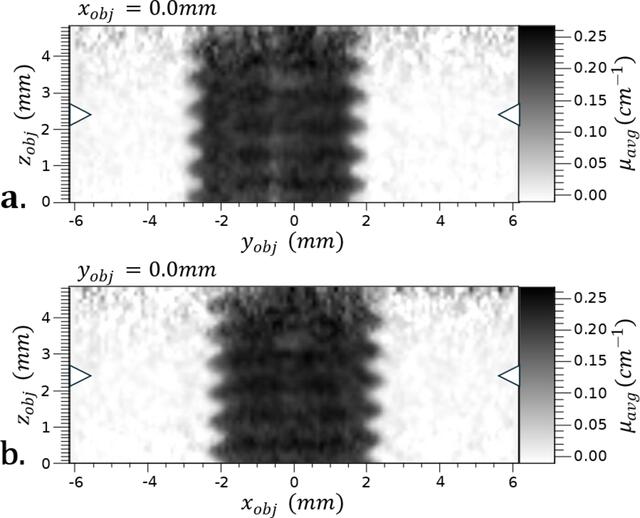

Figure 8
Orthogonal medial plane views of the CT of the nylon screw just shown. Taken with the compressed beam produced with the parallel-beam compressor. Left and right arrows identify the location of the images shown in Fig. 7[link].

Journal logoJOURNAL OF
SYNCHROTRON
RADIATION
ISSN: 1600-5775
Volume 33| Part 2| March 2026| Pages 271-277
https://doi.org/10.1107/S1600577525009609
