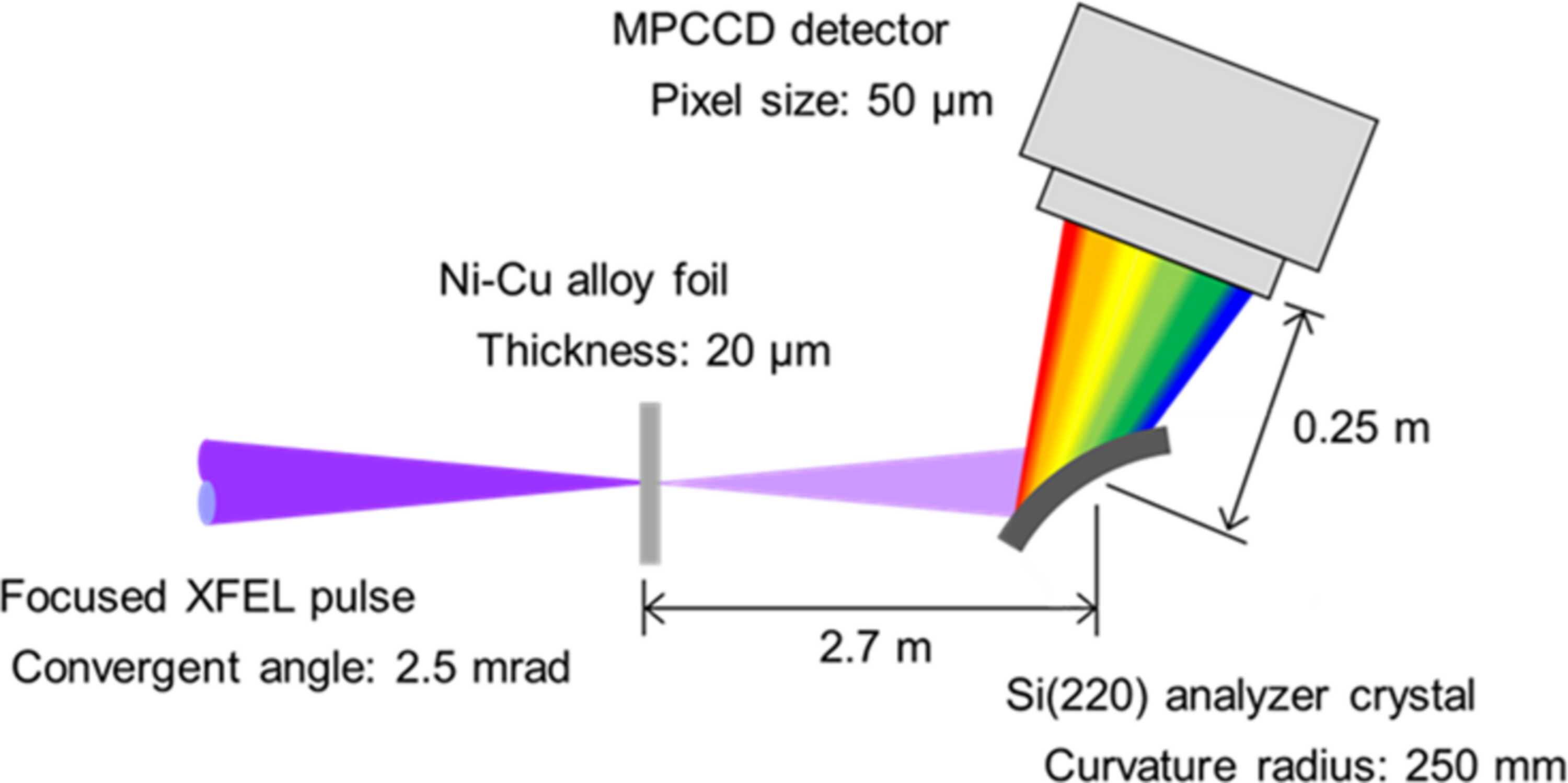

Figure 1
Schematic of the experimental setup. Focused 10 keV XFEL pulses irradiated a Ni–Cu alloy (constantan) foil. The resulting Kα1 lasers were simultaneously measured in a single-shot manner using a dispersive spectrometer consisting of a convex bent Si(220) analyzer crystal and an MPCCD detector. The central photon energy for the observation was set to 7.8 keV, corresponding to a Bragg angle of 24.5°. An energy observation range of 1.2 keV was achieved, with an energy resolution of 1.5 eV per pixel.
