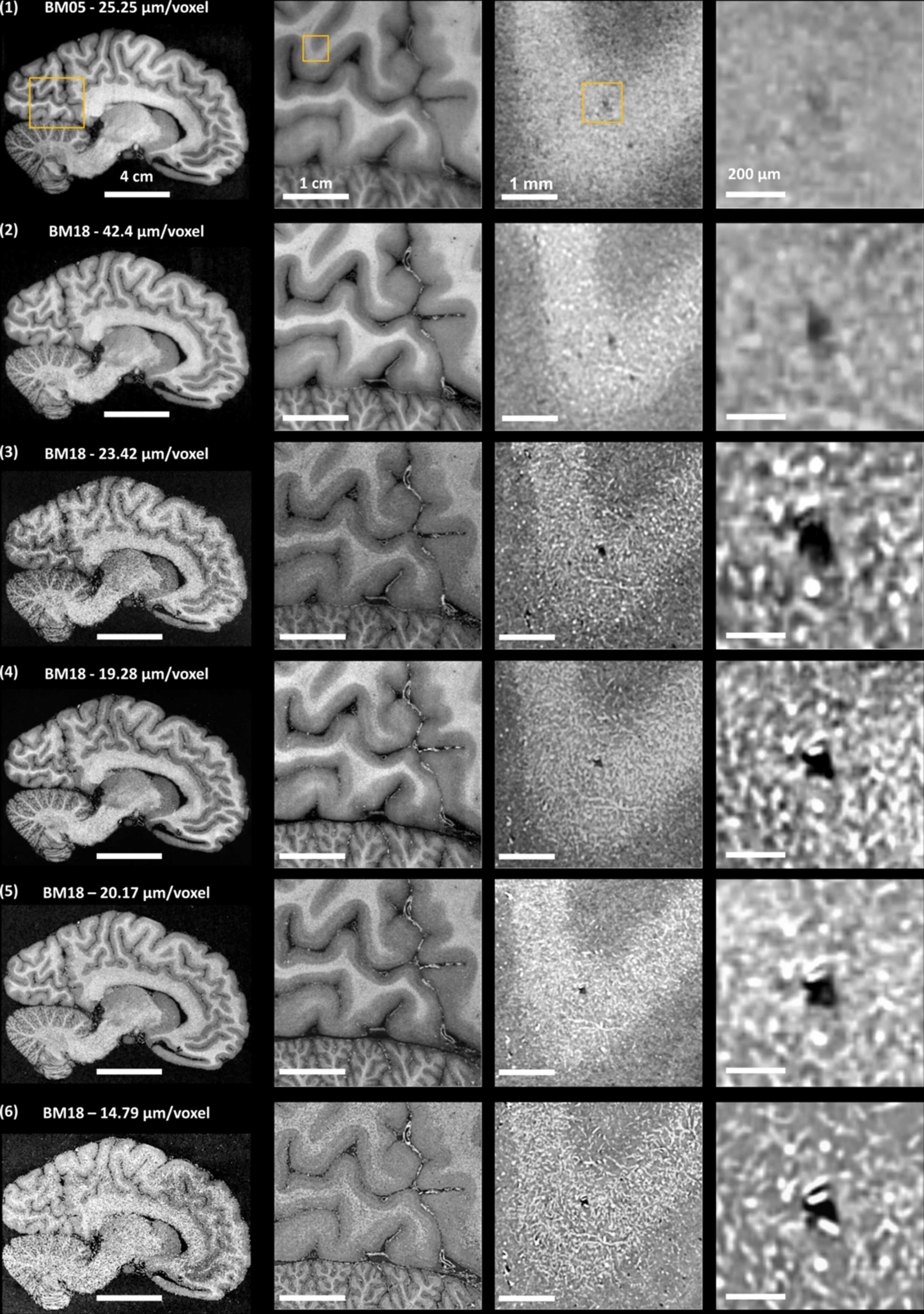

Figure 2
Comparison between BM05 and BM18 acquisitions using an illustrative sagittal slice at the same location of the brain. From left to right column: complete slice, first, second and third digital zoom level in the cortex containing both grey and white matter. Zoom locations are depicted in yellow in the top row and remain equal across acquisition types. Note that acquisition parameters differ between configurations (voxel size, propagation distance, detector setup), reflecting the progressive optimization of the technique. Contrast levels were adjusted independently for each dataset to optimize visualization of anatomical structures.
