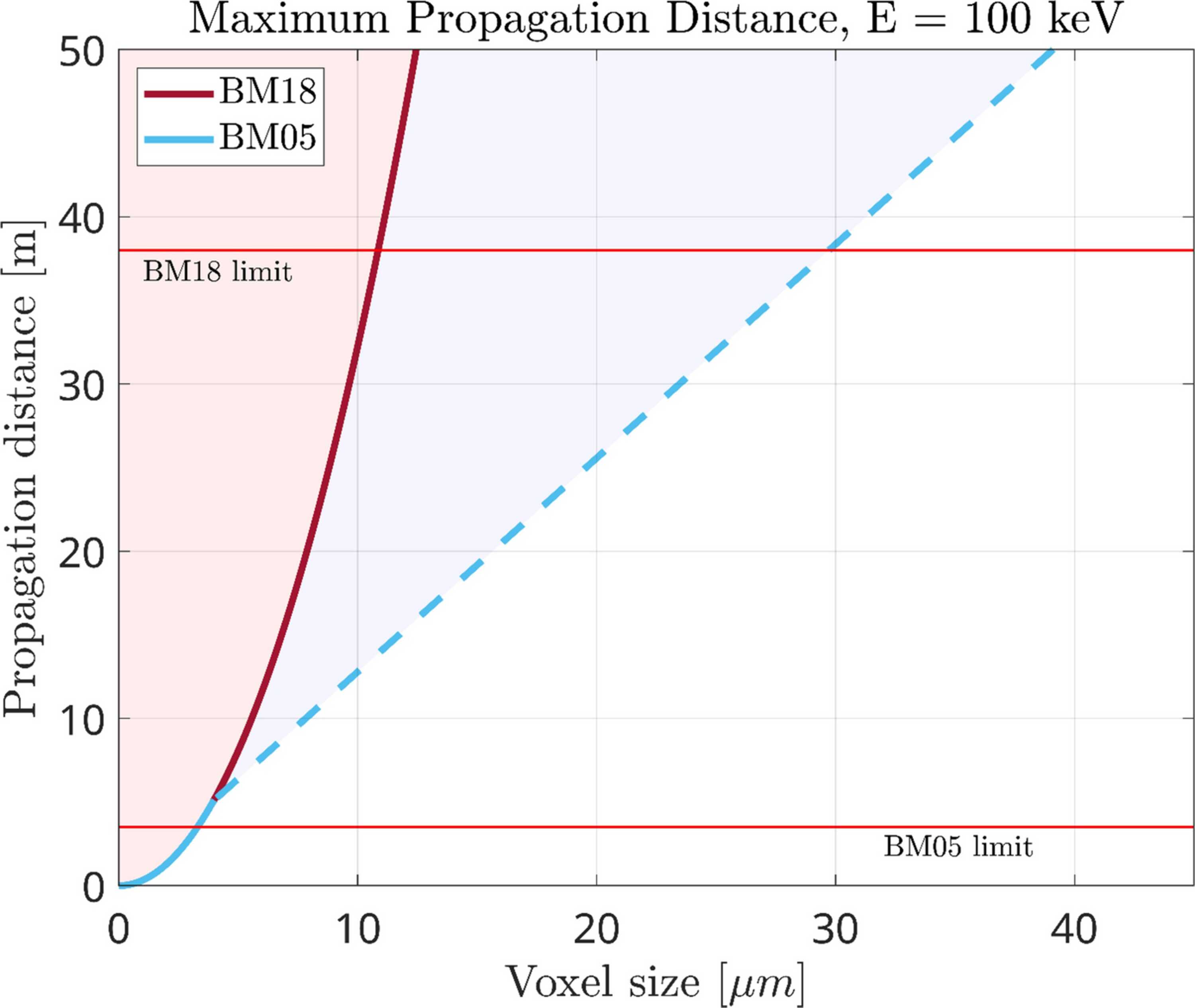

Figure 4
Maximum propagation distance achievable at beamlines BM18 and BM05 for an energy of 100 keV, as constrained by either the near-field limit or geometrical blur (independent of energy). The horizontal red lines indicate the maximum propagation distance achievable by hutch size. The dashed curve indicates the region at which geometrical blur takes over the near-field limit, which does not happen in BM18 until much further propagation distances than plotted. Forbidden zones are shadowed with the corresponding beamline colour.
