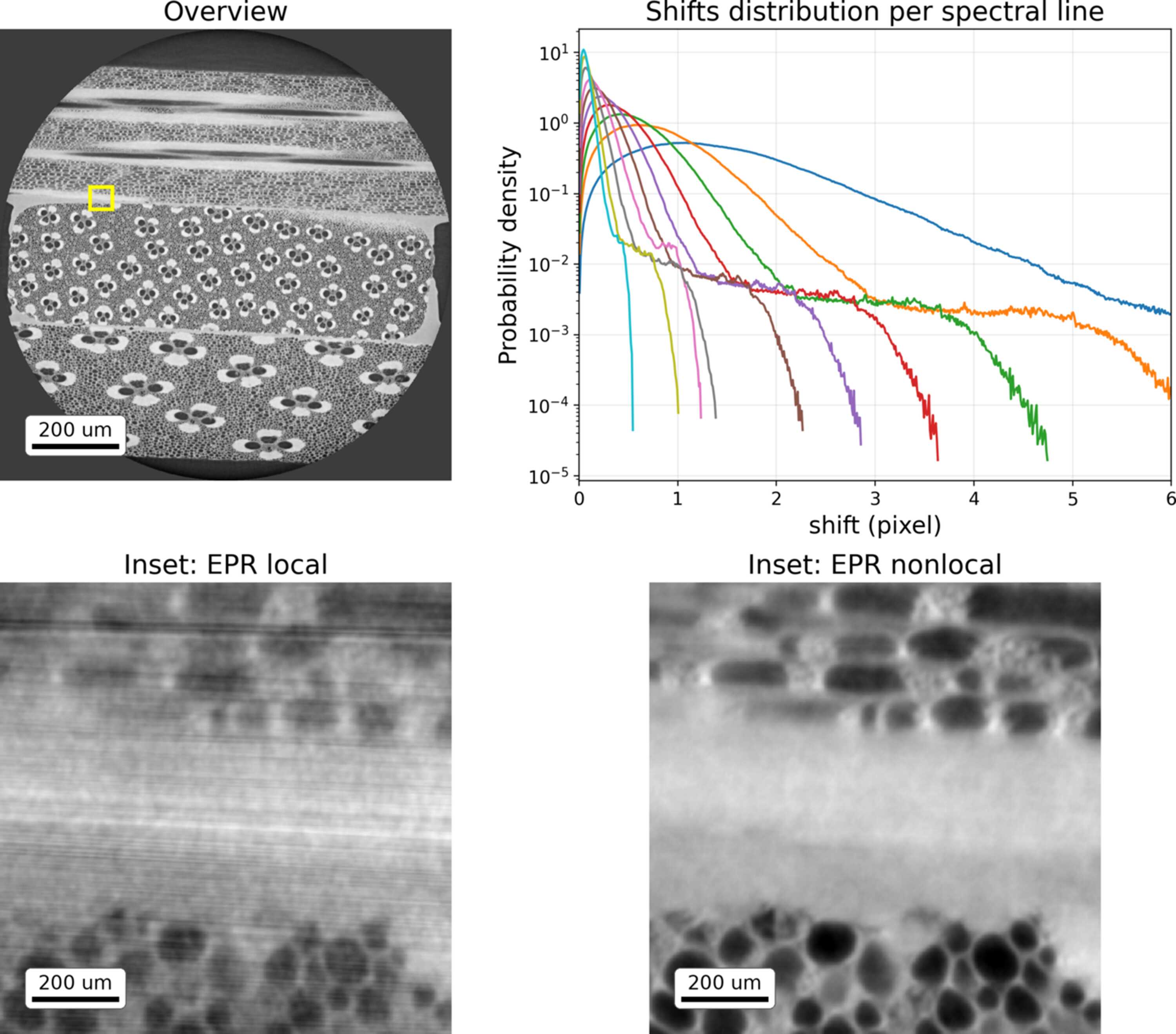

Figure 10
Zoom on a bamboo region acquired at 1.12 µm voxel size, 71 keV average beam energy, and 250 mm propagation distance. Top left: overview. Top right: distribution of estimated WKB0 transverse shifts (in detector-pixel units) for each sampling energy (spectral line) on a representative radiograph. Bottom left: local solver after two iterations (diverging). Bottom right: non-local solver with 10 spectral lines, 5 iterations. Scale bars: 200 µm in the spatial-image panels.
