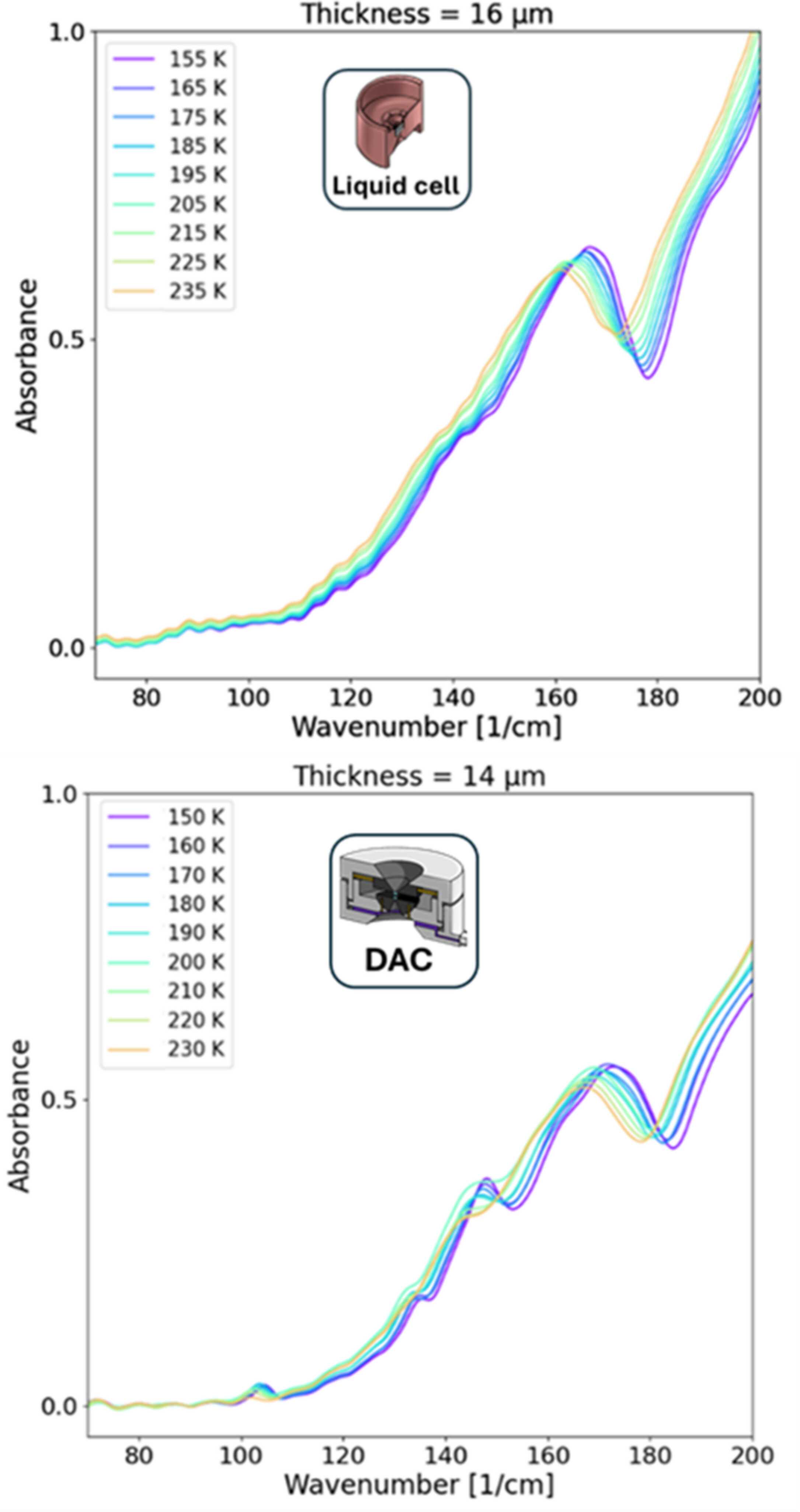

Figure 18
Comparison between the low energy peak of the connectivity band measured on water ice formed inside the liquid cell (top) and the DAC (bottom) in the temperature range 150–230 K. The presence of low intensity peaks for ice obtained in the DAC points at the presence of another form of ice different from the hexagonal one.
