Figure 2

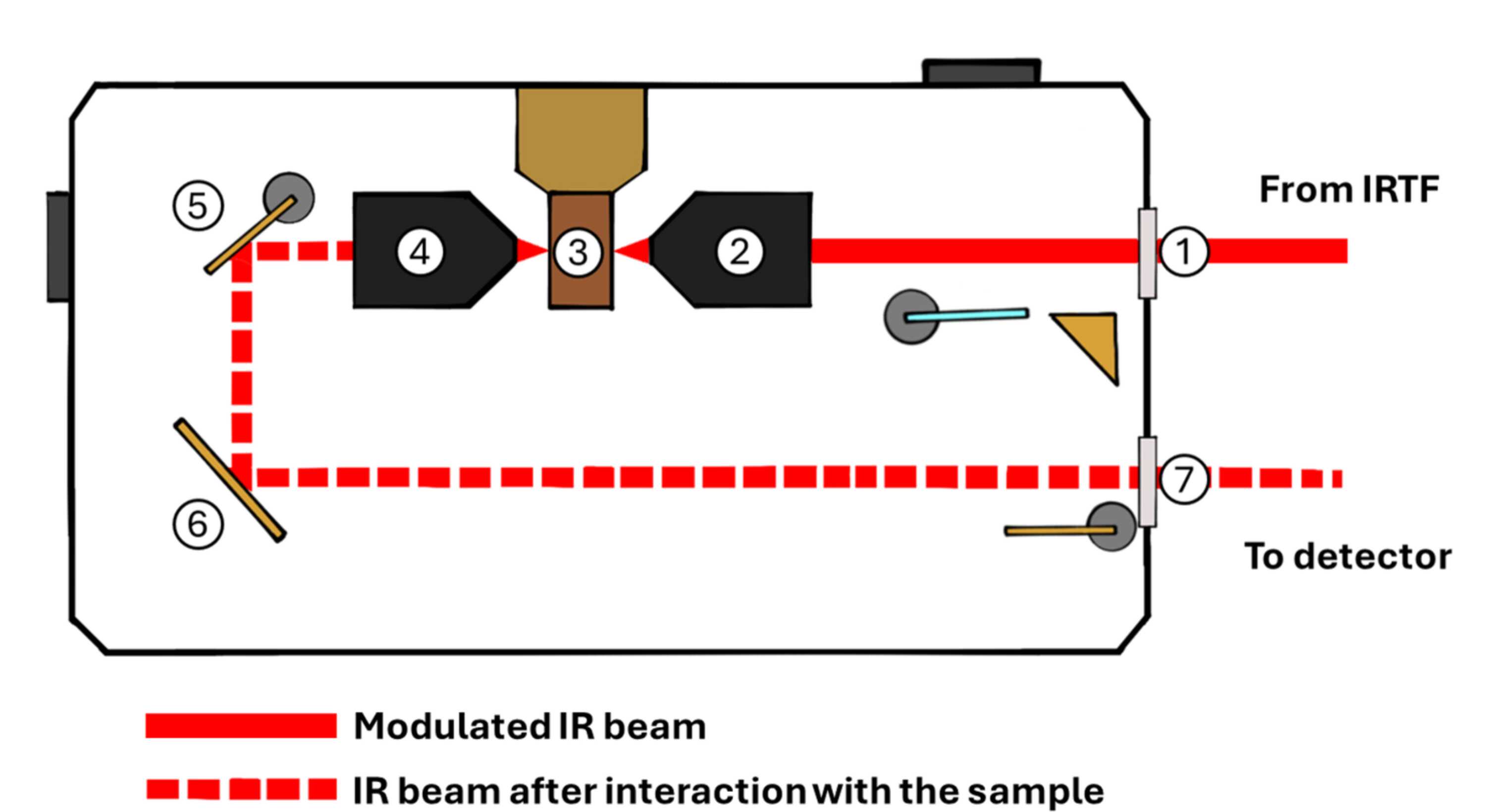

Components layout of the optical setup box in transmission configuration: (1) entrance of the IR beam and (7) exit towards the detector, (2) and (4) Schwarzschild objectives, (3) sample support, (5) flip mirror and (6) fixed mirror.
