Figure 3

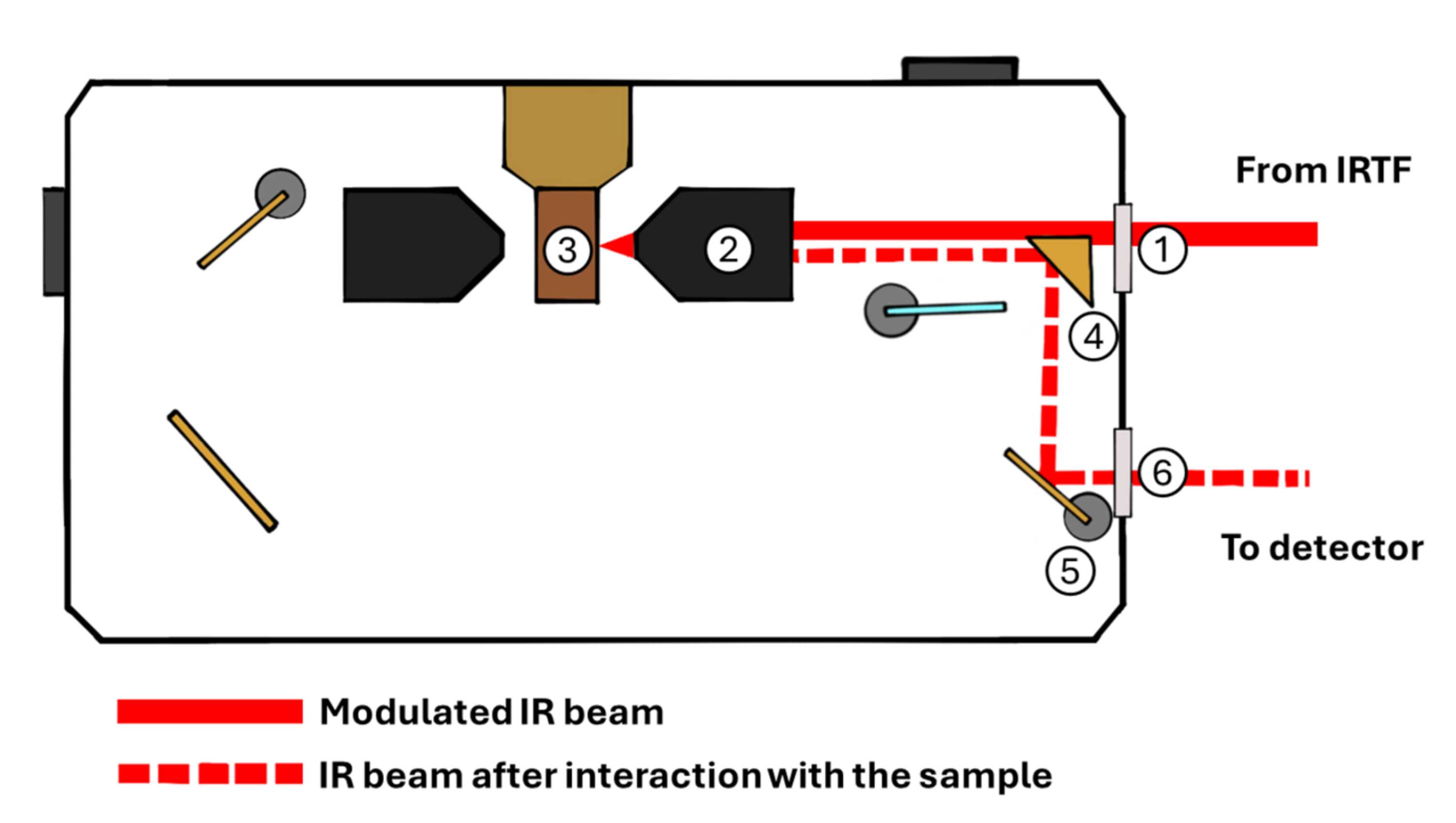

Components layout of the optical setup box in reflectivity configuration: (1) entrance of the IR beam and (6) exit towards the detector, (2) Schwarzschild objective, (3) sample support, (4) right angle mirror and (5) flip mirror.
