Figure 2

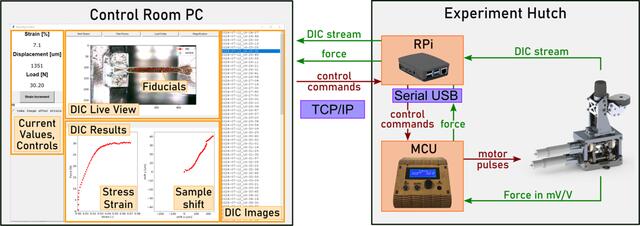

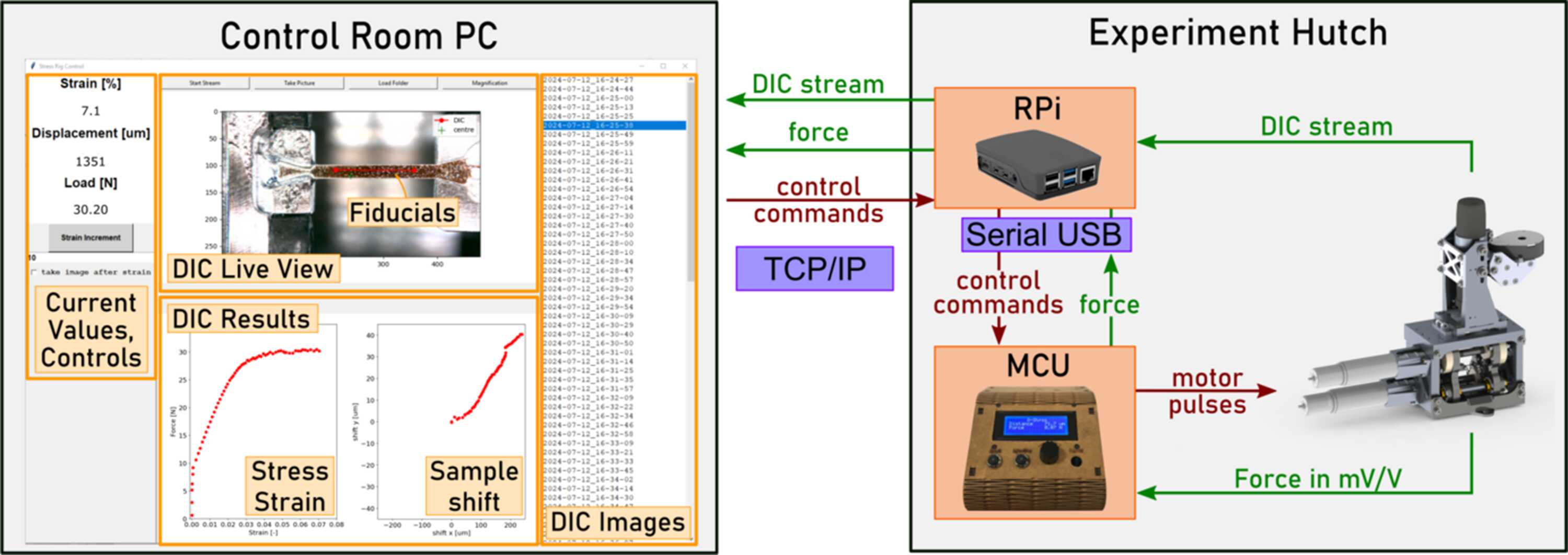

Scheme of the control components and data flow. Left: control software with graphical user interface. Right: setup in the experimental hutch comprising MCU, Raspberry Pi and load frame |
|
|
|
Figure 2
Scheme of the control components and data flow. Left: control software with graphical user interface. Right: setup in the experimental hutch comprising MCU, Raspberry Pi and load frame |
