Figure 5

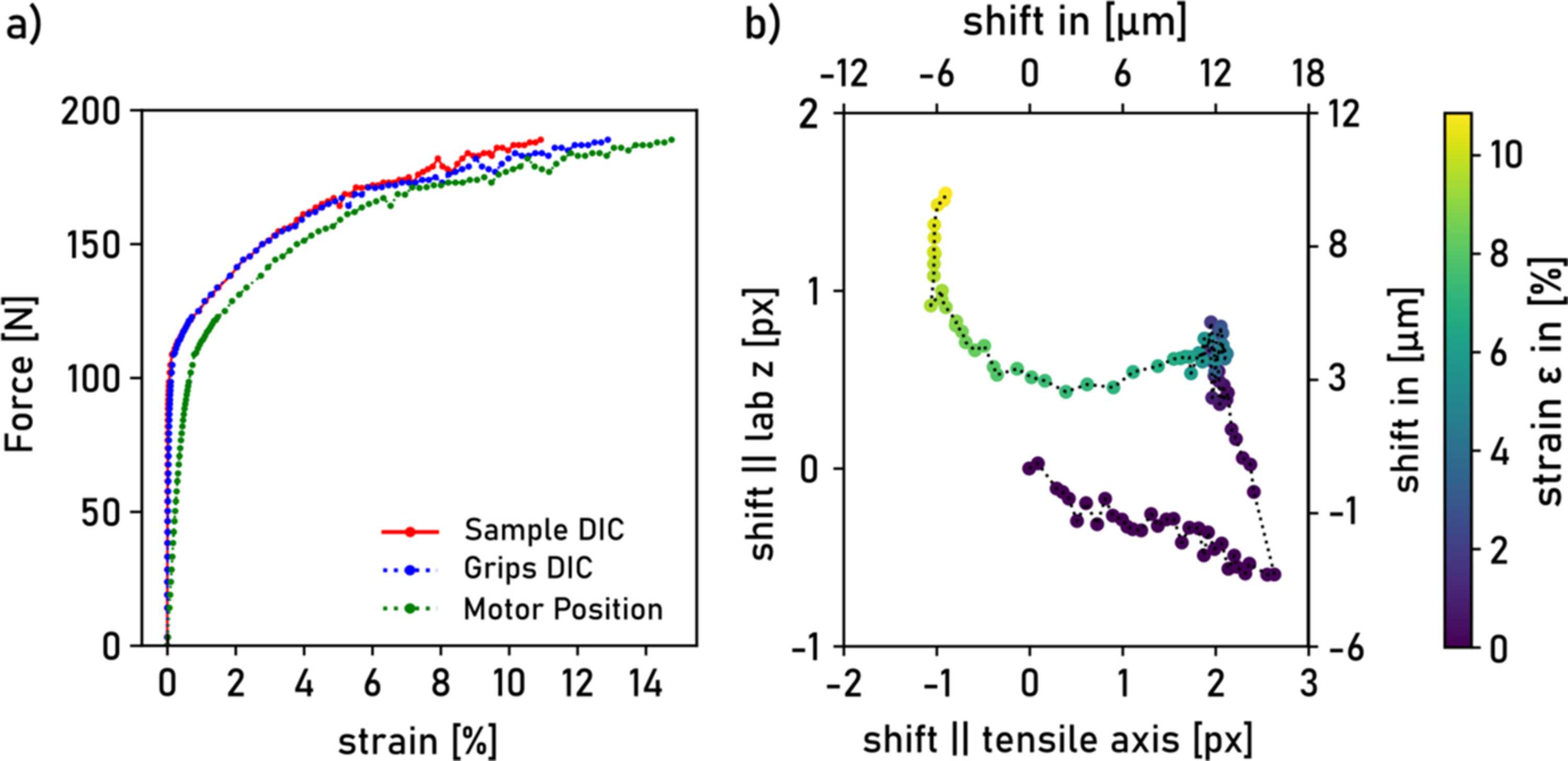

(a) Strain–force curve of DC04 steel sample. The force curve is plotted based on the strain calculated from the motor positions and DIC evaluations on the sample grip positions and the gauge area of the specimen. DIC marker positions in Fig. B.4 of the supporting information. (b) Shift of the sample centre in the view plane normal to the X-ray beam. The markers are coloured according to the DIC strain value of the load sequence with ɛ ranging from 0% to 11%.
