Figure 11

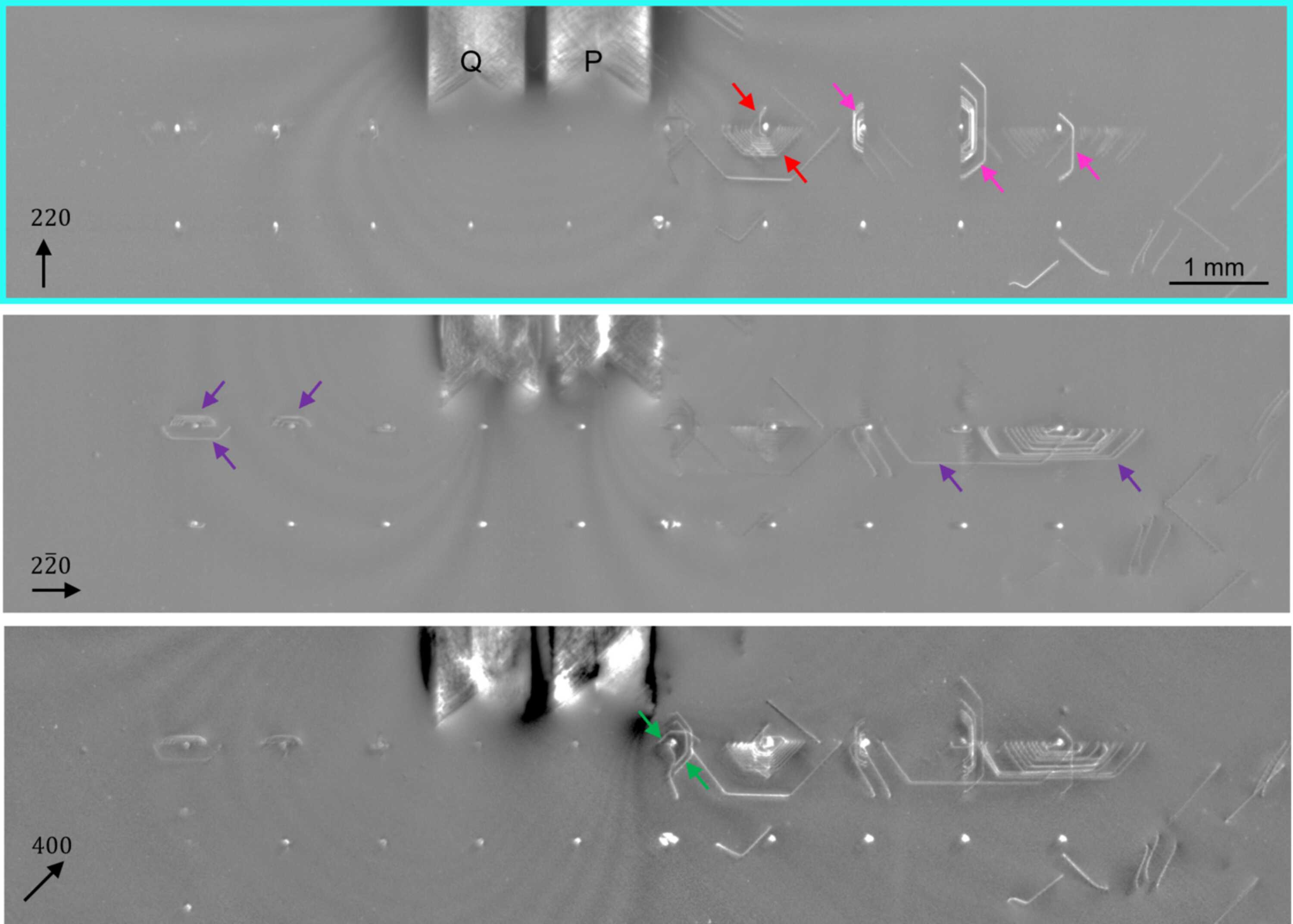

Three of the eight ex situ wafer maps (220, $[2\bar{2}0]$ and 400) recorded in the region marked by the blue rectangle in Fig. 7

, showing the final dislocation configuration after both thermal treatments. Variations in dislocation-contrast visibility were used to determine the Burgers vectors using the extinction criterion. Two prominent slip bands, P and Q, enter the ROI from the wafer edge.
