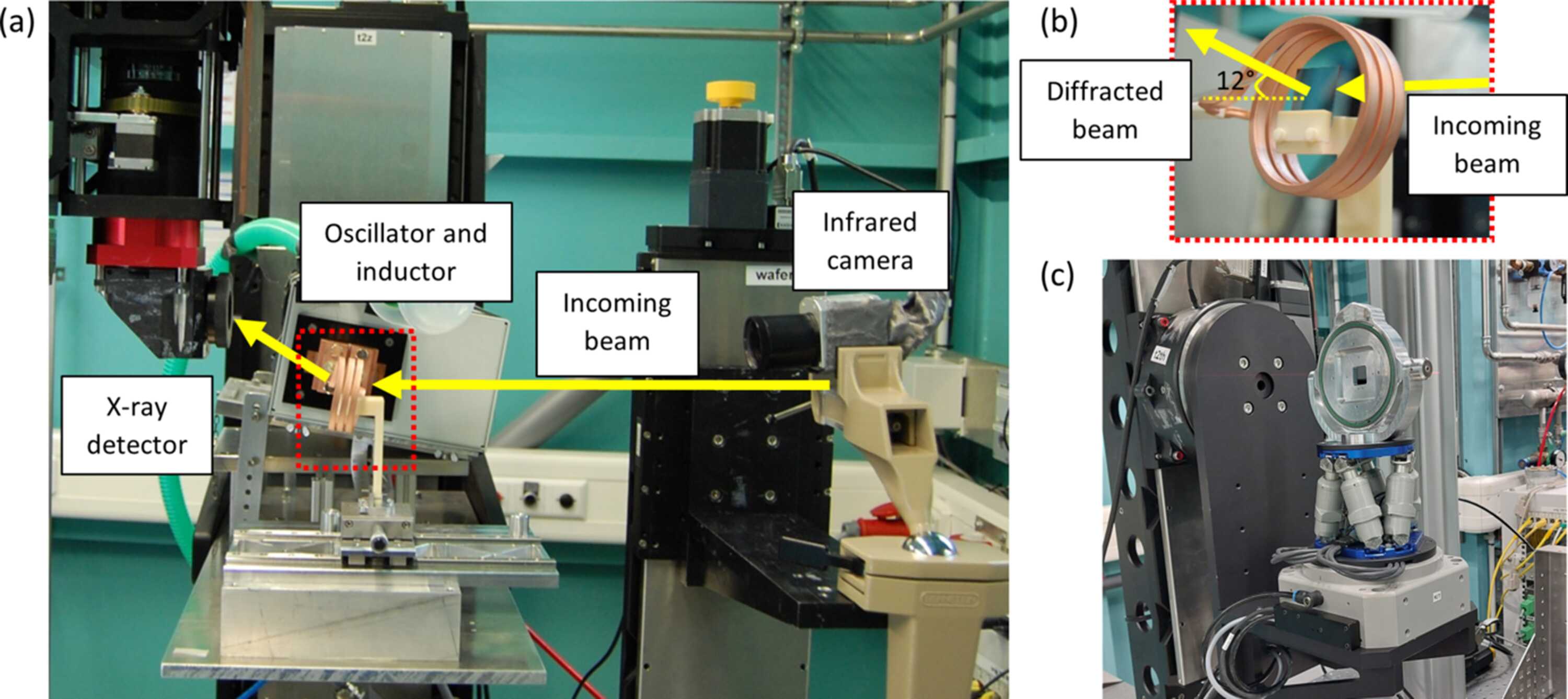

Figure 8
XWBT setups used for the measurements at the KIT Light Source. (a) In situ sample environment installed on a translation stage. The X-ray detector and the IR camera observe the sample simultaneously. (b) The sample positioned in the center of the induction coil. (c) Ex situ setup enabling flexible sample positioning and orientation.
