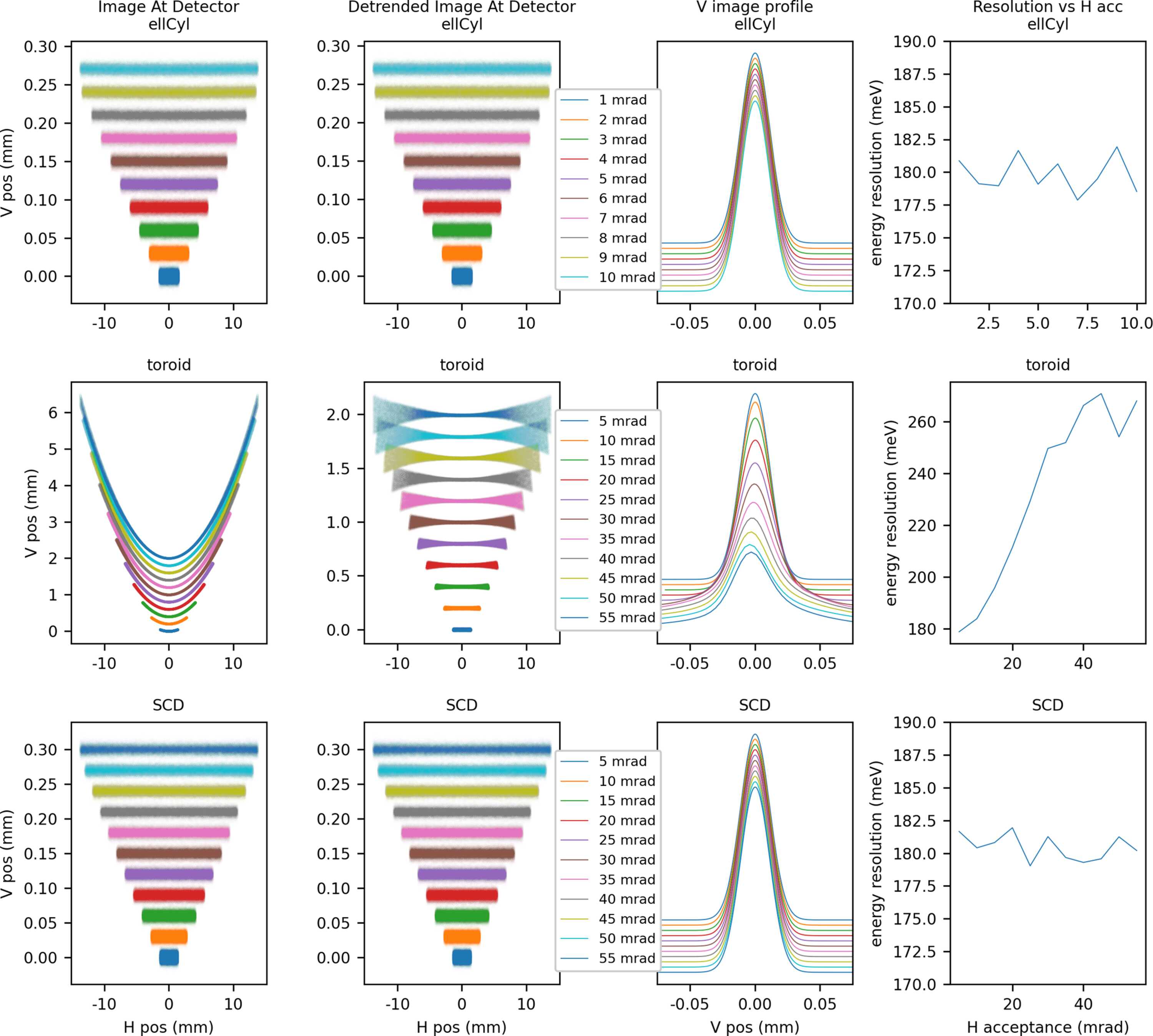

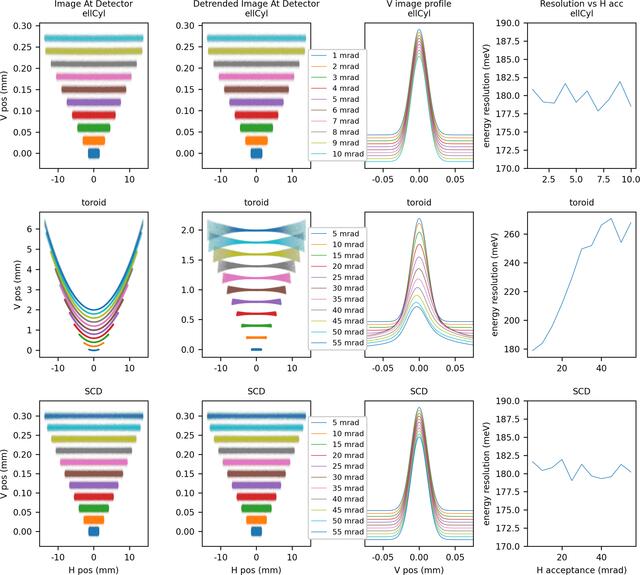

Figure 7
Horizontal acceptance of the three spectrometer designs at 540 eV. Each row corresponds to a particular design, (top) the elliptical cylinder, (middle) the toroid and (bottom) the sagittal collimating diaboloid. The left-hand column shows the images of the beam on the detector for an increasing series of horizontal acceptance. The second column shows the images with the curvature detrended using a second-order polynomial. The third column shows the resultant vertical beam profiles, from which the resolution is determined. The fourth column shows the resulting energy resolution as a function of the horizontal acceptance. The images are offset for clarity. The noise in the resolution plots is due to the finite number of rays used in the ray tracing.
