Figure 9

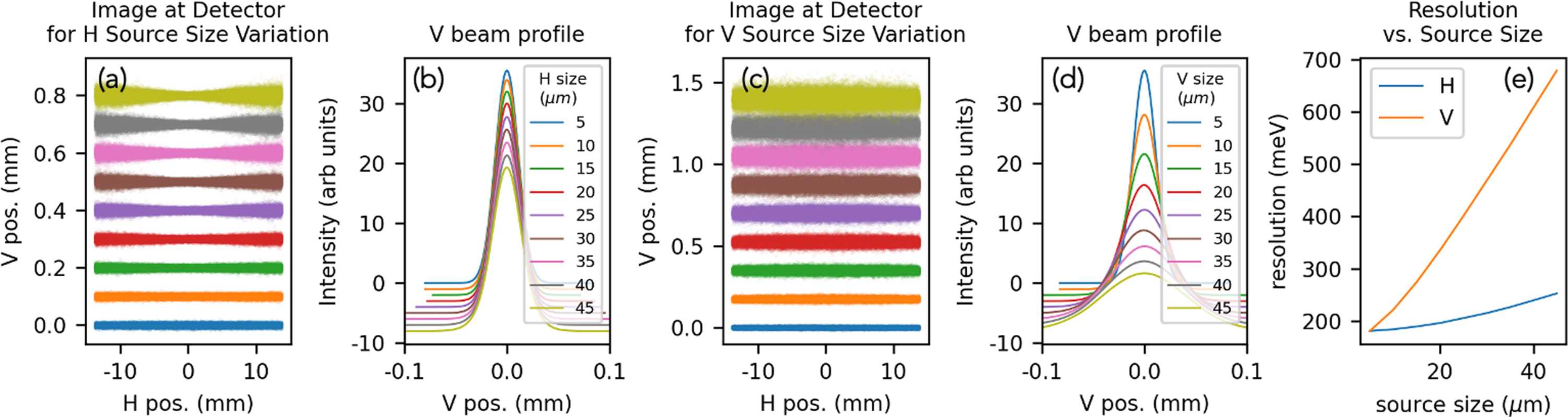

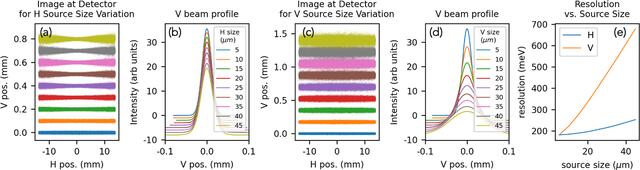

Effects of finite H and V source size at 540 eV for the sagittal collimating design. (a) The image at the detector for increasing H source size. (b) The resulting V profile of the beam. (c) The image at the detector for increasing V source size. (d) The resulting V profile of the beam. The curves are offset for clarity. (e) The resulting energy resolution as a function of the H and V source sizes. The H and V acceptances are set to the full value accepted by the spectrometer.
