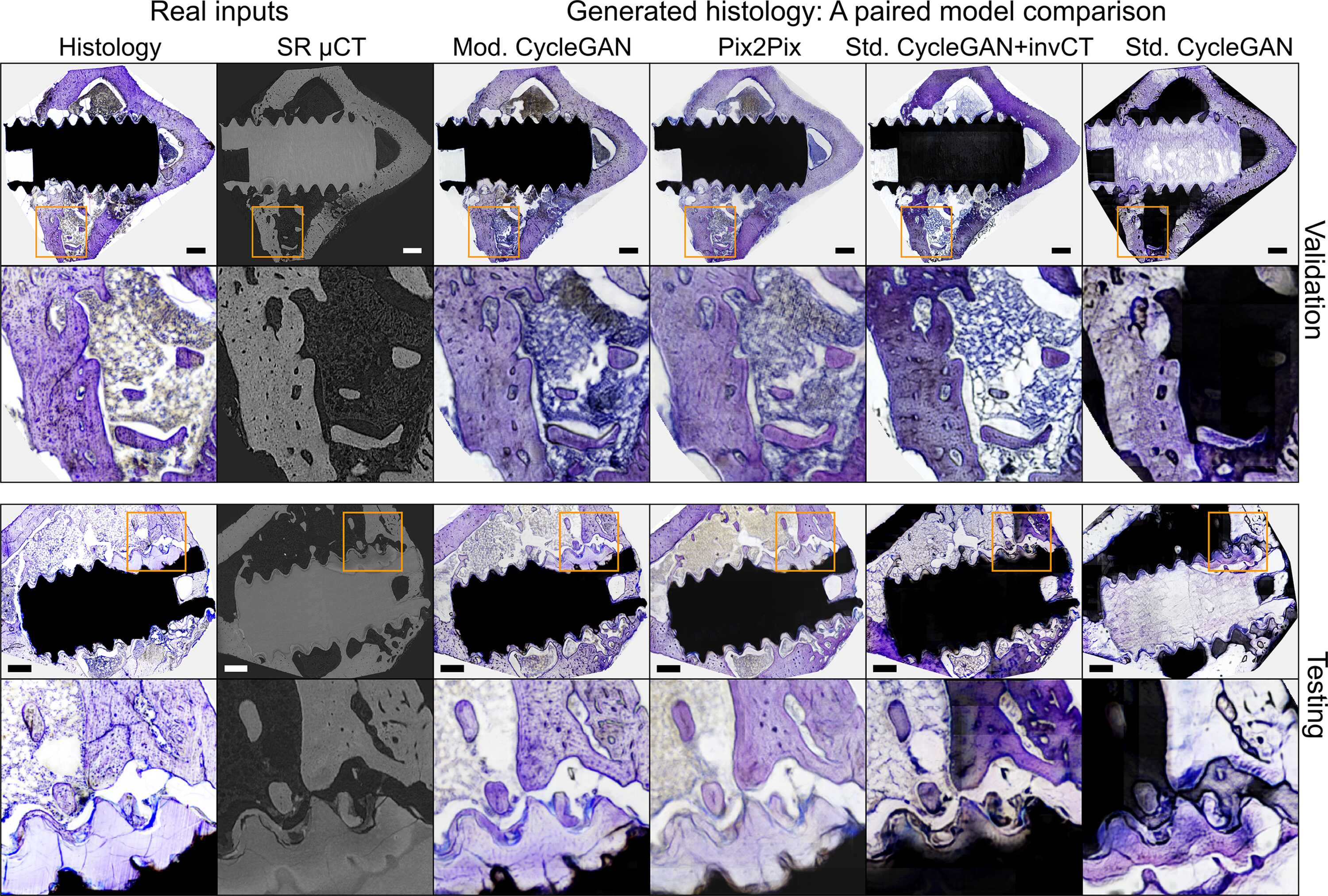

Figure 6
Inference results from each of the paired model variants tested, with WSI and 256 pixel ROI examples from validation and test data sets. `Mod. CycleGAN' refers to the modified CycleGAN including the extra supervisory and greyscale loss terms, which is our chosen model. `Std. CycleGAN' refers to the Standard CycleGAN model, which was trained from the same paired data sets, but without the extra loss terms. `Std. CycleGAN + invCT' refers to a variant of the same model but trained and tested with an inverted CT input, in an attempt to combat the issue of intensity mismatch. The scalebar in each WSI represents 500 µm.
