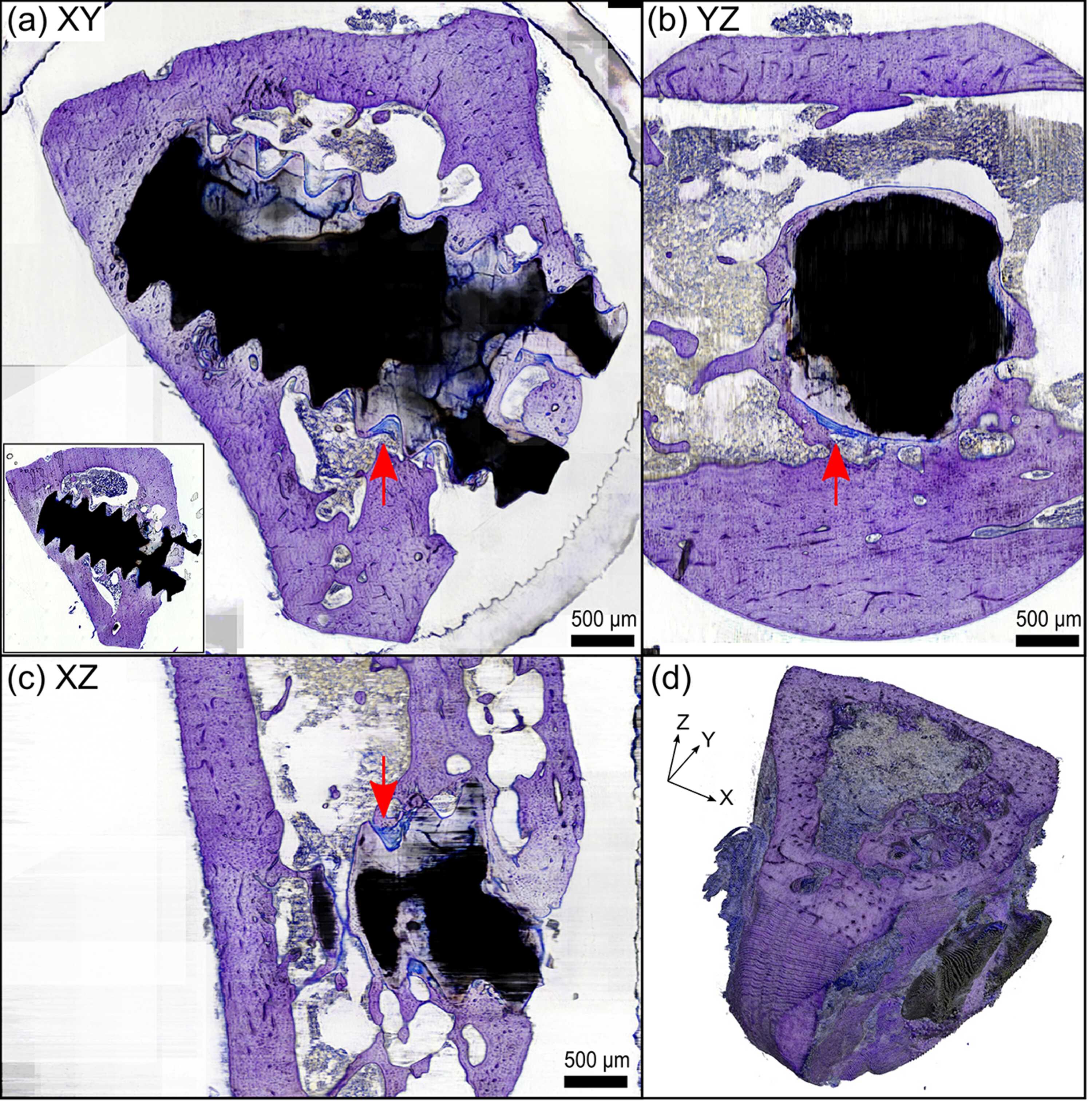

Figure 8
Orthogonal views (a, b, c) and volume rendering with direct RGB mapping (d) of a virtually stained 3D X-ray histology dataset featuring an Mg-based degradable bone-implant sample. A real histology image acquired from the same bone-implant sample is shown for reference in the bottom-left inset of (a). Red arrows point to a region of new bone growth adjacent to the degradation layer, distinctly coloured in a bright blue.
