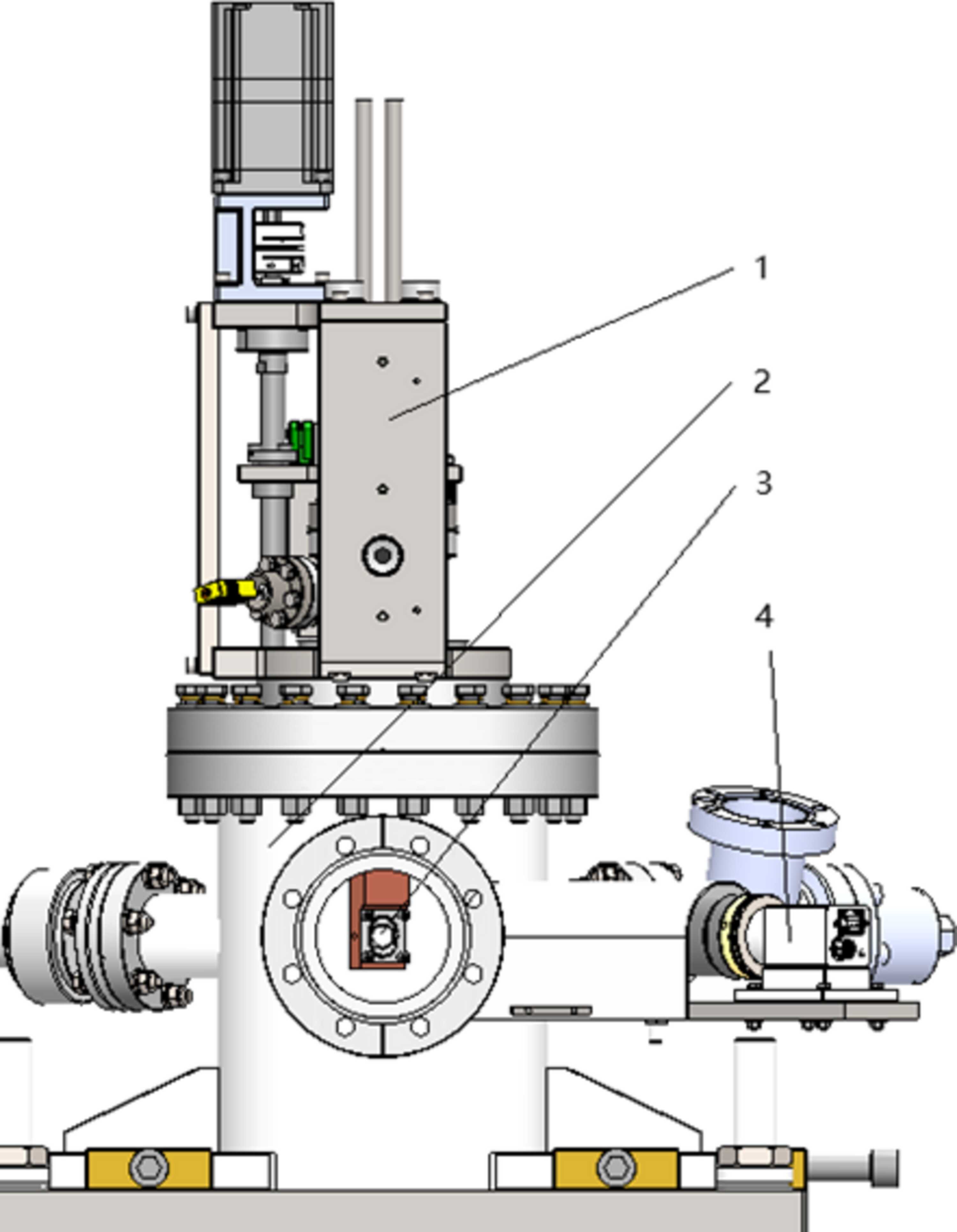

Figure 1
Structural schematic of the fluorescent target system, highlighting subsystems (1) drive assembly, (2) vacuum chamber, (3) target holder, and (4) imaging optics. In a representative white-beam implementation at HEPS, a 20 mm-diameter diamond scintillator is used together with a 35 mm translation stroke and a 1× imaging system, corresponding to a representative pixel resolution of 5.86 µm per pixel.
