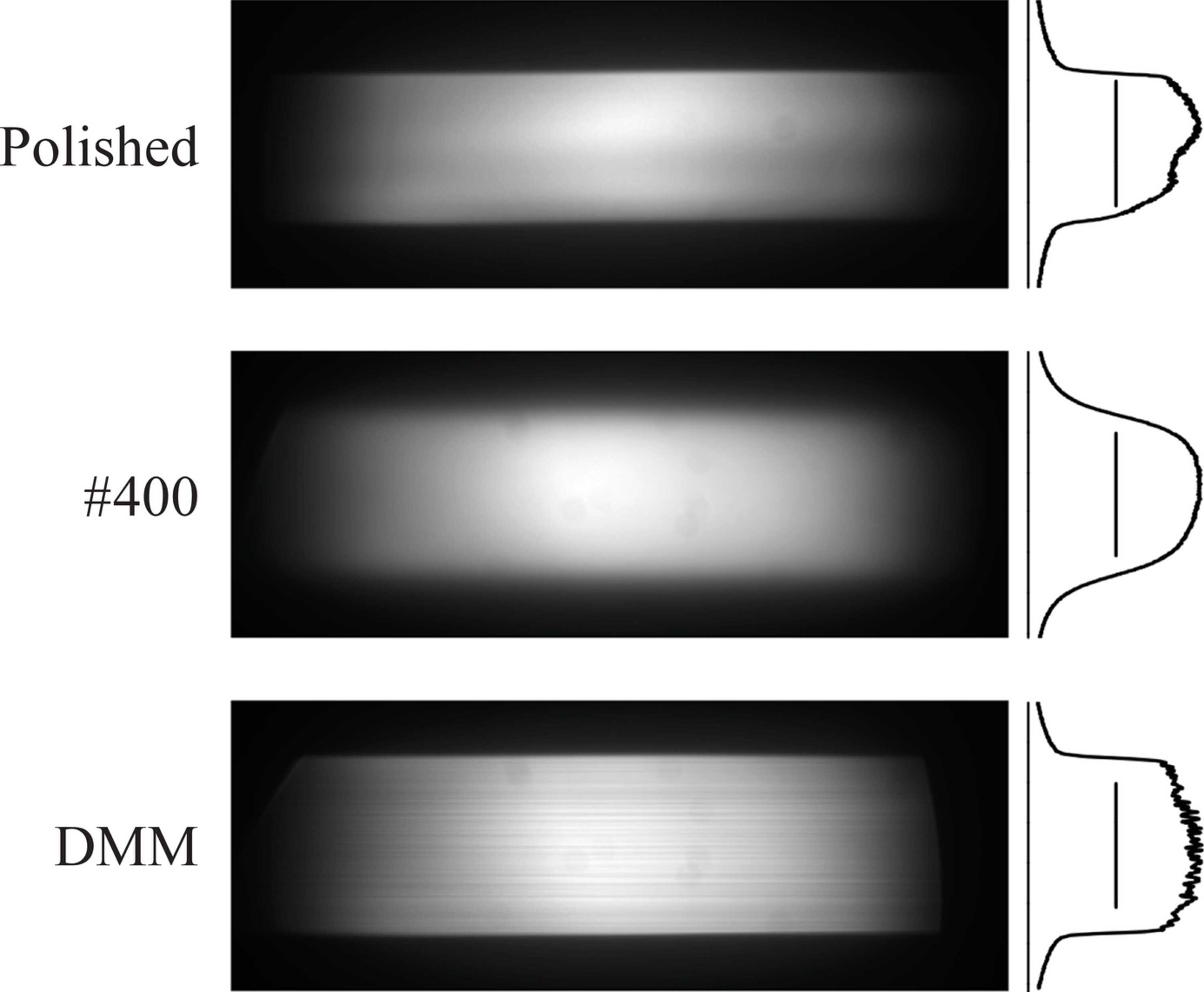

Figure 6
Beam images and corresponding vertical intensity profiles at the beam centers. Results are shown for the polished crystals, the #400 crystals, and the DMM. The intensity scale is normalized independently for each image. The polished crystals exhibit slow vertical modulation; the #400 crystals produce a uniform profile; and the DMM beam displays stripe patterns from multilayer figure errors. The bars represent 1 mm.
