Figure 1

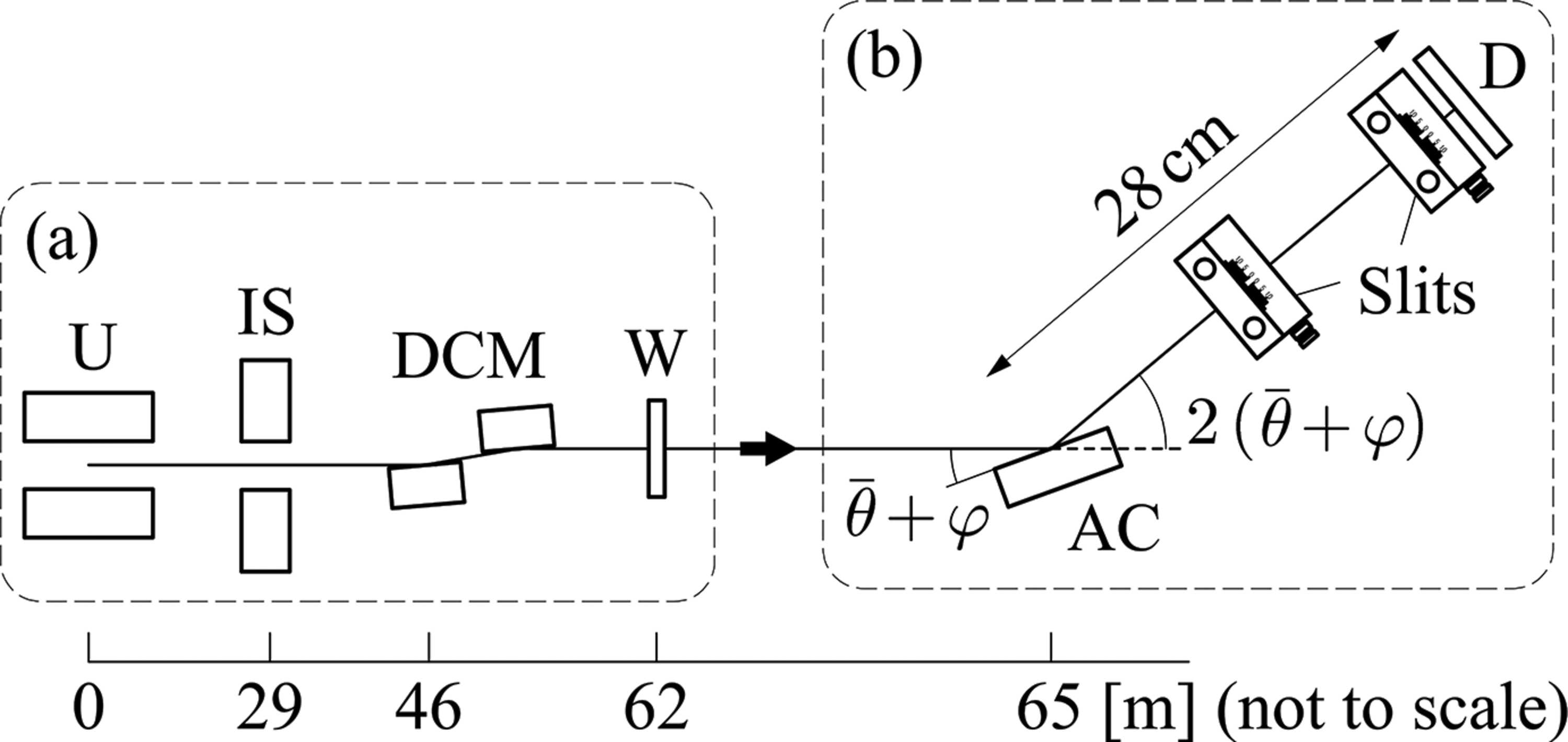

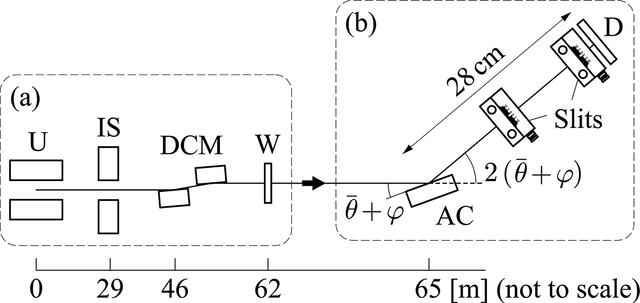

Optical layouts (a) to prepare the beams to be characterized and (b) to perform the rocking-curve tomography. Distances from the undulator (U) are indicated in metres. IS: incident slit; DCM: double-crystal monochromator; W: vacuum window; AC: analyzer crystal; D: detector.
