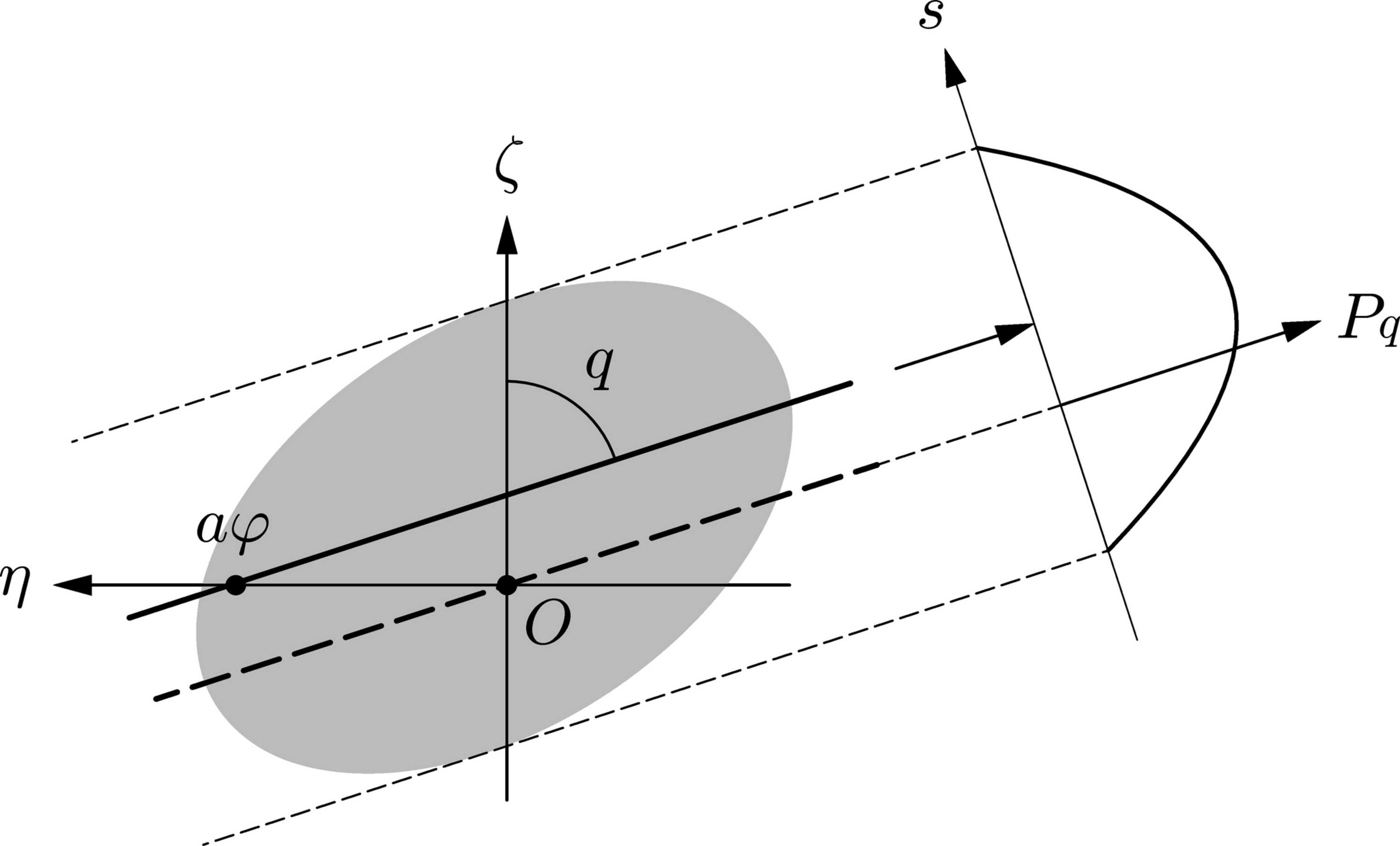

Figure 3
Magnified view of Fig. 2[link] around the reference point, shown in the scaled (ζ, η) coordinate system. The angular coordinate is rescaled by the aspect factor a to adjust the relative scaling between wavelength and angle.
