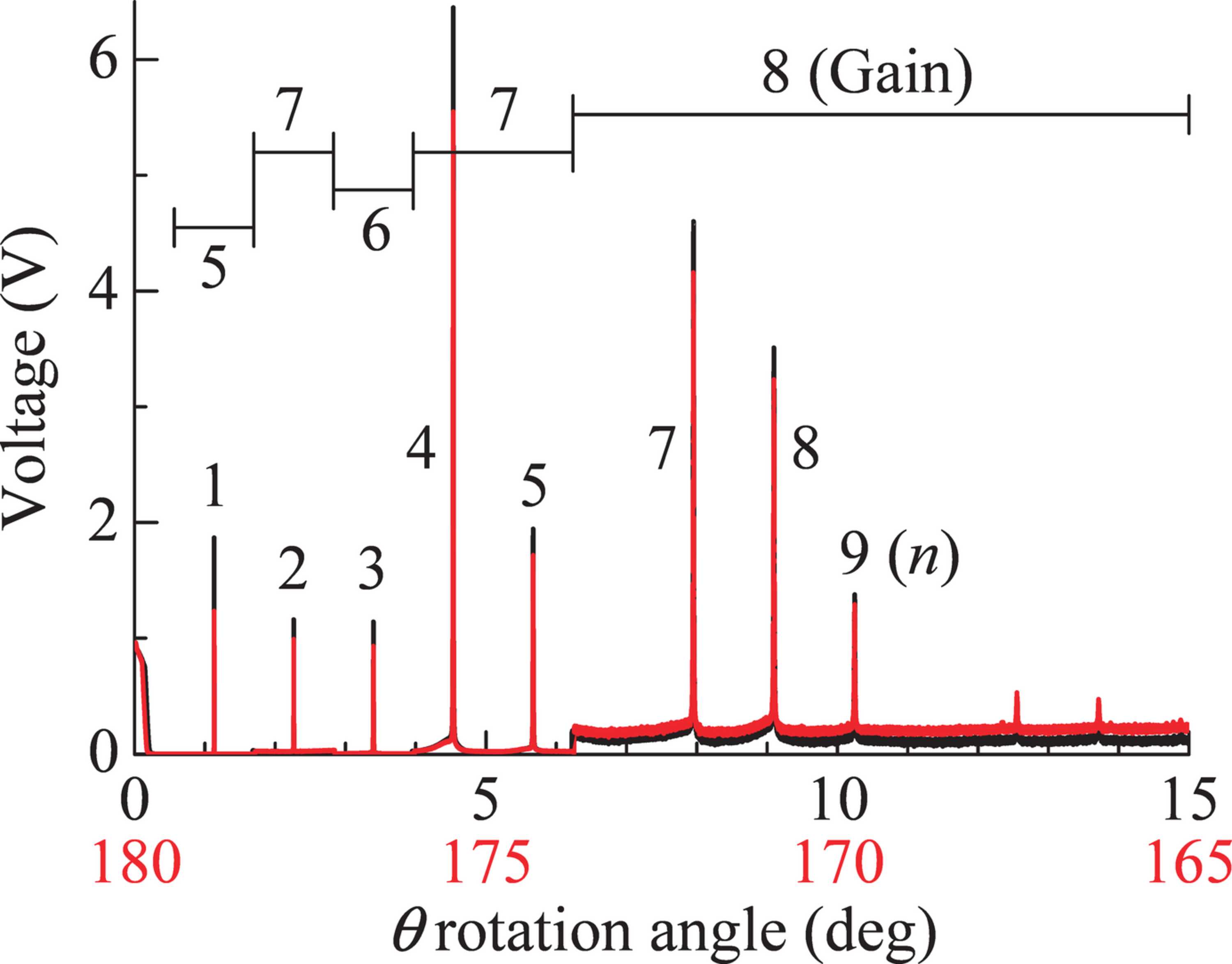

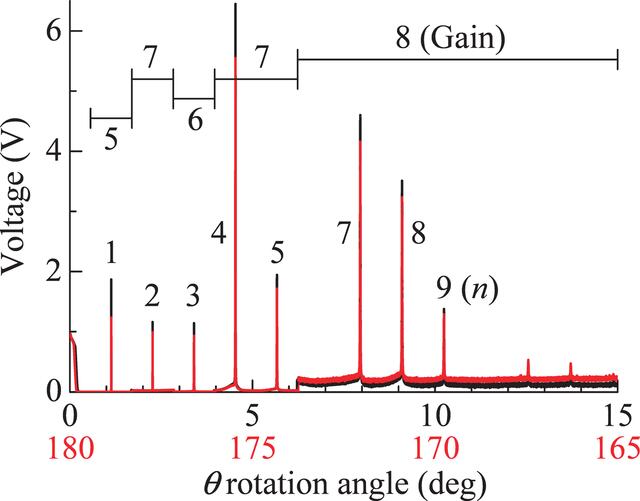

Figure 5
Intensity profile obtained from a full-rotation θ–2θ scan for the #1200 beam. The black curve corresponds to the θ range from 0° to 15°, and the red curve to the range from 165° to 180° (downward-reflection geometry), plotted in descending order of θ. The integers shown near the profile indicate the reflection order n of the nnn and Mathematical equation reflections, while those shown above indicate the exponent m of the amplifier gain (10m V A−1). Peak positions were used to determine the mean wavelength of the beam.
