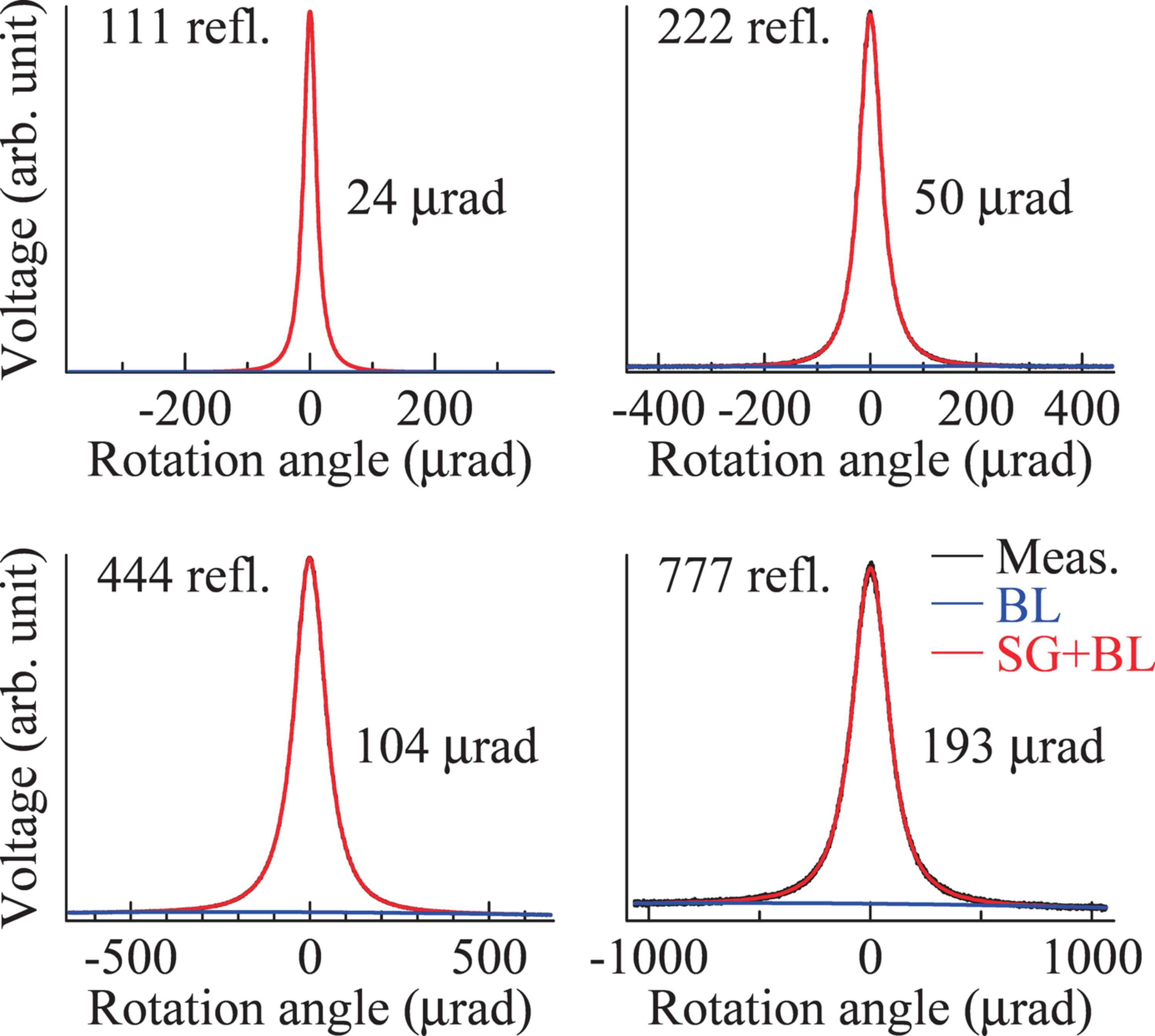

Figure 6
Magnified rocking-curve profiles for the n = 1, 2, 4 and 7 upward reflections for the #1200 beam, with each peak position aligned to zero. Measured data are shown by black curves, and the estimated baselines by blue curves. After baseline subtraction, the profiles were smoothed using second-order Savitzky–Golay filters. The red curves show the sums of the smoothed profiles and the baselines, illustrating that electronic noise was effectively suppressed without significant distortion of the peak shapes. The FWHMs of the smoothed profiles are indicated.
