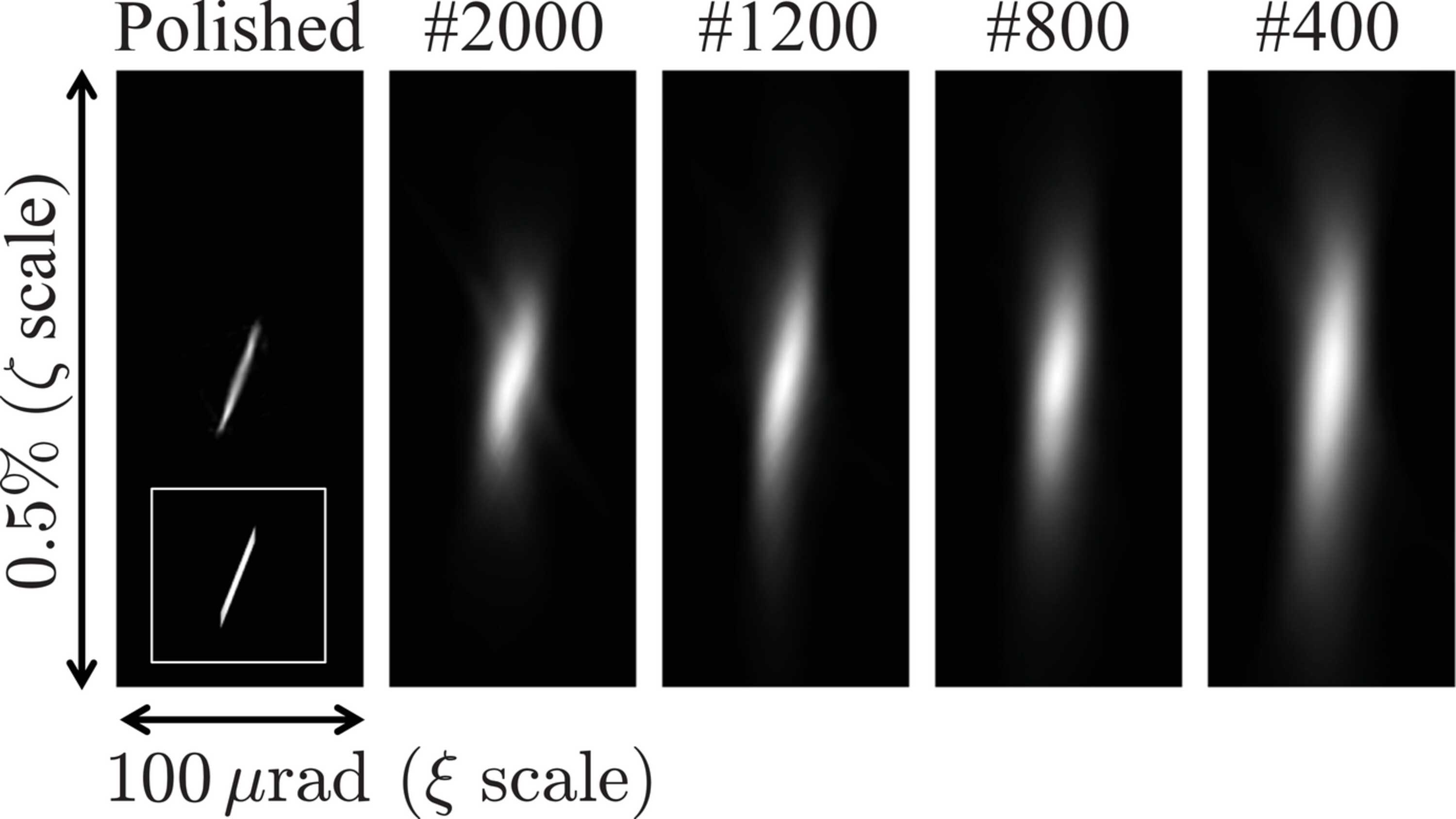

Figure 7
Reconstructed wavelength–angle distributions for the beams produced using the polished- and lapped-crystal DCMs. The vertical axis represents the relative wavelength deviation ζ, and the horizontal axis represents the angular deviation. The displayed ranges are 0.5% in wavelength and 100 µrad in angle. The intensity scale is normalized independently for each distribution. For the polished-crystal case, the distribution calculated using the DuMond analysis is shown below the reconstructed distribution and enclosed by a white frame.
