A robotic and high-throughput X-ray micro-computed tomography workflow

Liu, X.; Lavens, A.; O'Sullivan, J.B.; Kastengren, A.; Townsend, A.T.; Toyoda, J.G.; Wijesuriya, H.; Varga, T.; Michalska, K.

doi:10.1107/S1600577526005539

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

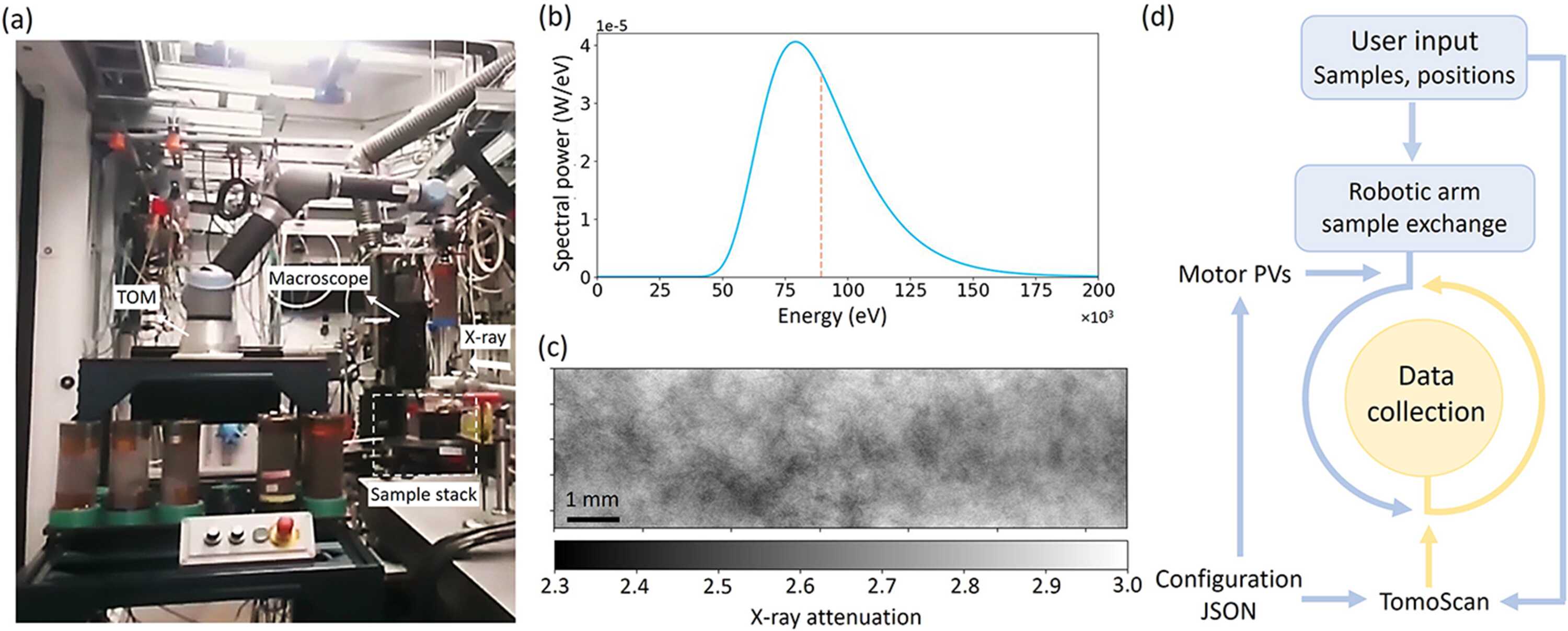

Figure 3
Demonstration of the high-throughput data collection on soil cores. (a) The experimental setup on the beamline with the integration of the TOM robotic arm cart. (b) The spectral power distribution as a function of photon energy with 3 mm Cu filters on 7-BM. (c) A representative flat-field-corrected projection of the sample showing X-ray attenuation. (d) The workflow for automatic sample exchange, movement and data collection.

JOURNAL OF
SYNCHROTRON
RADIATION

ISSN: 1600-5775

Volume 33| Part 4| July 2026|

https://doi.org/10.1107/S1600577526005539
