A robotic and high-throughput X-ray micro-computed tomography workflow

Liu, X.; Lavens, A.; O'Sullivan, J.B.; Kastengren, A.; Townsend, A.T.; Toyoda, J.G.; Wijesuriya, H.; Varga, T.; Michalska, K.

doi:10.1107/S1600577526005539

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

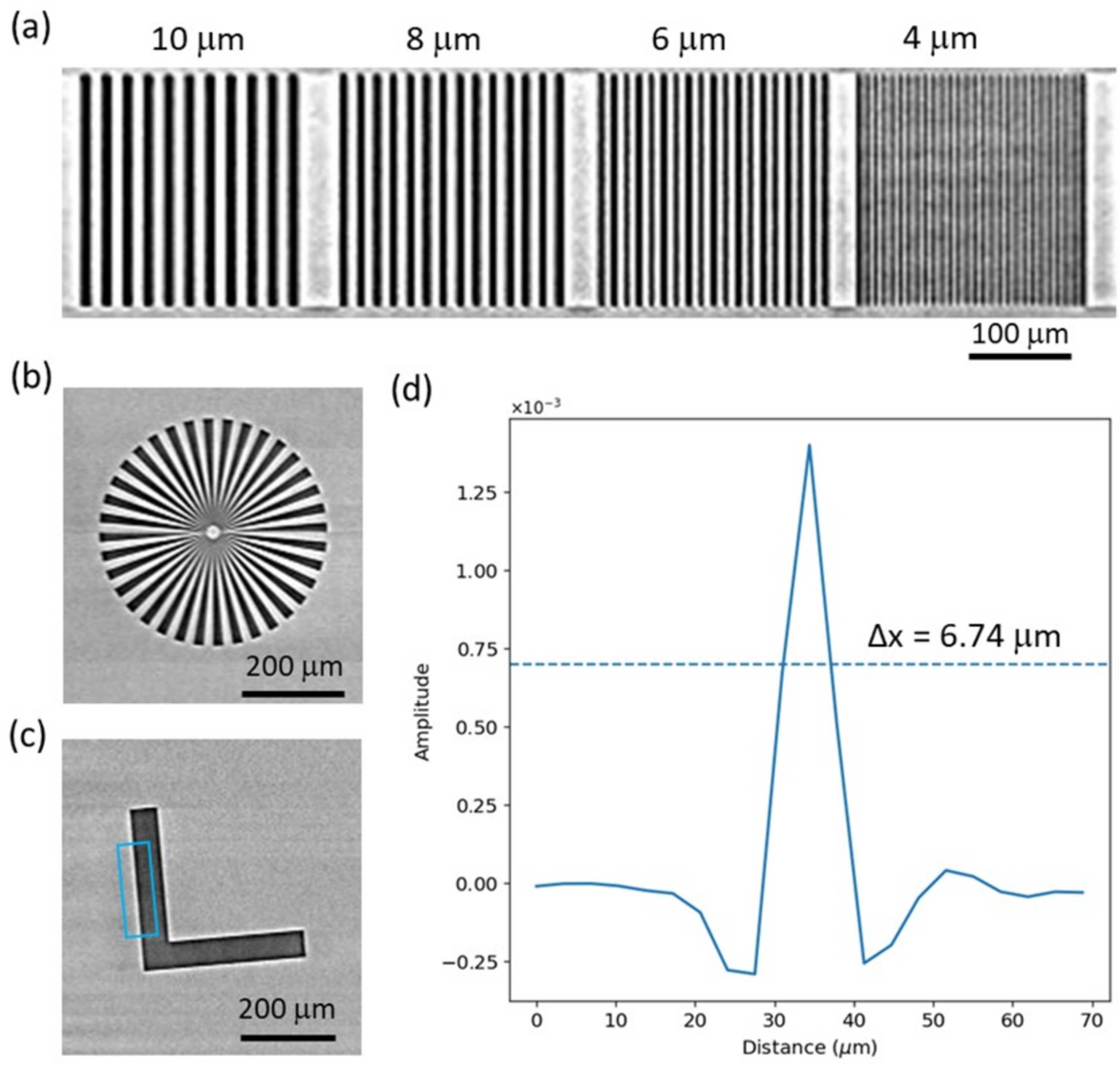

Figure 4
Verification of the resolution of the reconstructed image using the QRM bar pattern phantom. (a) Line pairs with widths ranging from 4 to 10 µm. (b) The reconstruction of the Siemens star. (c) The reconstruction of the slanted L edge. (d) The LSF plot calculated as the first derivative from the highlighted frame in blue in panel (c).
