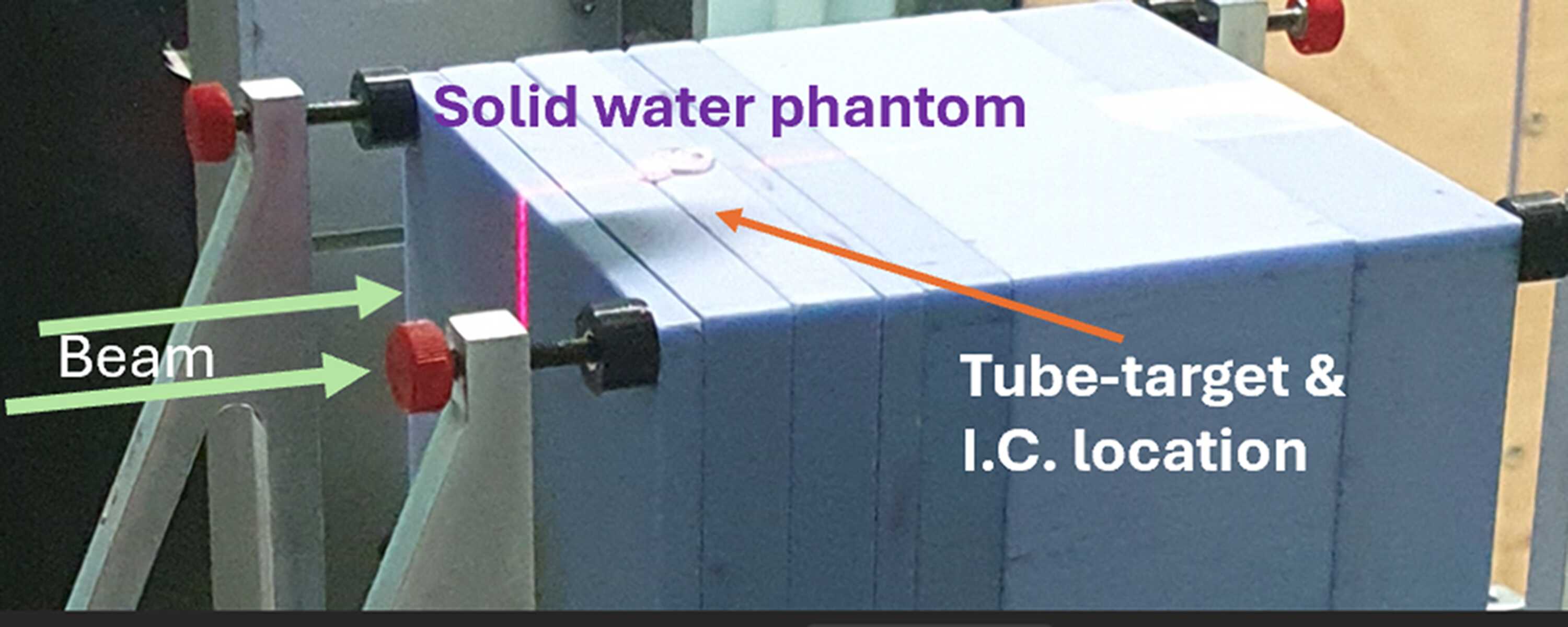

Figure 1
Experimental setup for dose delivery to a sample. The green arrows show the direction of the incident beam. The phantom (100 mm × 100 mm × 100 mm) is made of solid water material. The tube containing the cells was placed in the block at a depth of a 20 mm, relative to the incident beam. On the downstream face of the solid water phantom (not shown in the picture), a sheet of EBT4 GafChromic film was placed, to qualitatively verify dose delivery post-irradiation.
