Figure 1

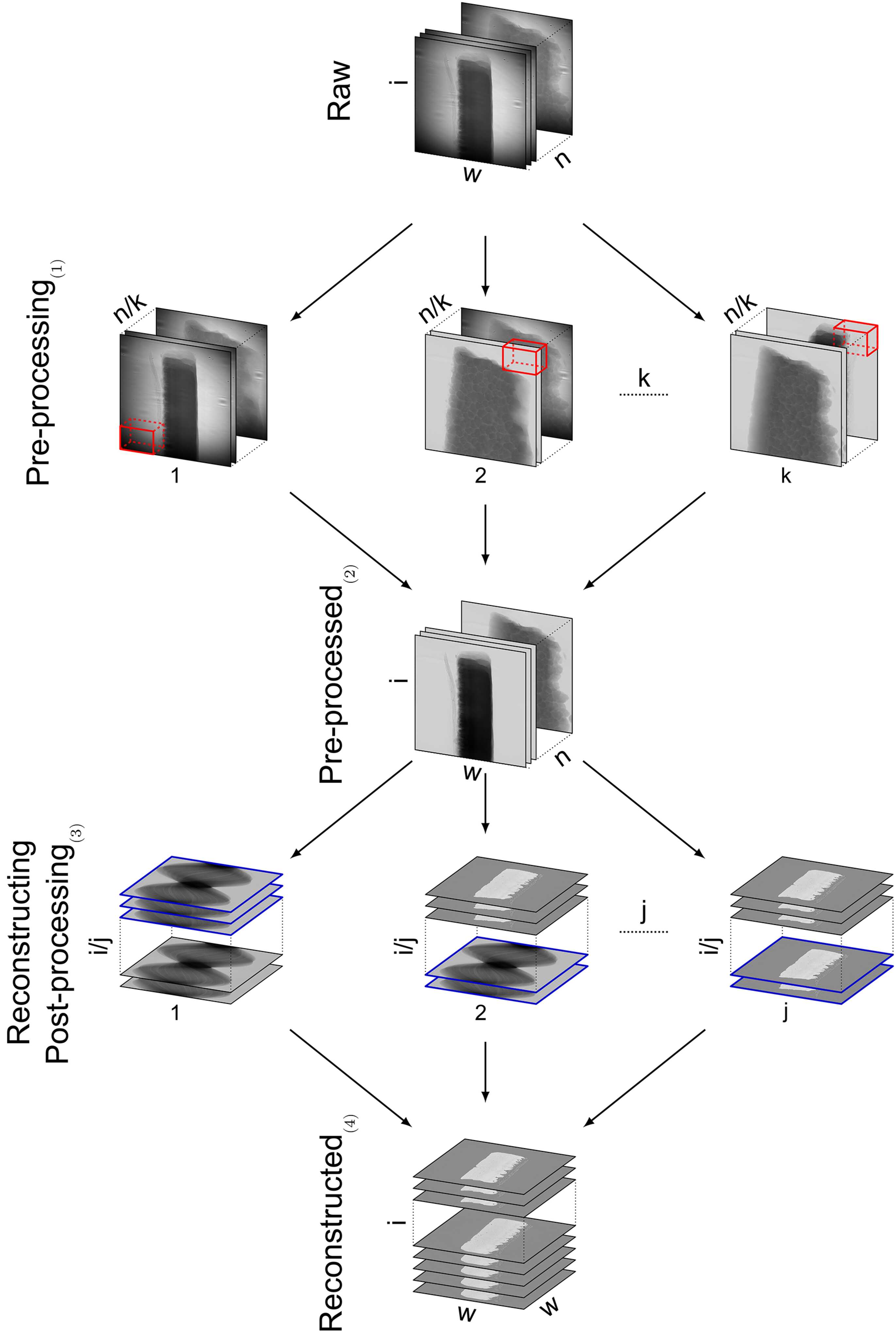

Data processing scheme, showing how data are split and collected. In the beginning the raw data are split into multiple jobs to be pre-processed in chunks, each chunk is then pre-processed in smaller subchunks (marked in red). The pre-processed data are then collected virtually, before being split again for the reconstruction and post-processing, again in a chunk/subchunk scheme (j chunks with subchunks marked in blue). Lastly the data can be physically collected. The sample is a piece of eggshell with both shell and membrane visible. The numbers on the figure correspond to the numbers of the corresponding steps in the description.
